Current Transformers
Carrel-Electrade import a wide range of current transformers.
Standard CTs ranging from 40/5 up to 4000/5A, split core CTs, flexible CTs & clamp-on CTs. Also available, devices designed to convert standard CTs into transducers, 4 to 20mA or 0 to 10V.

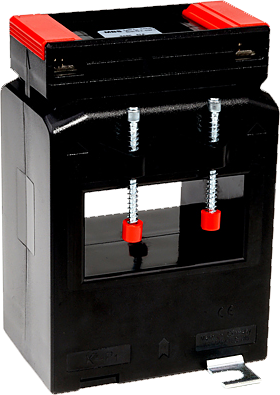

MBS Logo MBS AS Range Current Transformers
DIN rail, foot or bar mounting, Class 1
Quality current transformers made in Germany
ASR22.3-40/5A
Data sheet
40:5A CT, 22.5mm round bore, 1VA burden
ASR22.3-50/5A50:5A CT, 22.5mm round bore, 1VA burden
ASR22.3-60/5A60:5A CT, 22.5mm round bore, 1.5VA burden
ASR22.3-75/5A75:5A CT, 22.5mm round bore, 2.5VA burden
ASR22.3-100/5A100:5A CT, 22.5mm round bore, 2.5VA burden
ASK31.3-60/5A
Data sheet
60:5A CT, 30 x 20/26mm stepped bore, 1VA burden
ASK31.3-75/5A75:5A CT, 30 x 20/26mm stepped bore, 1.5VA burden
ASK31.3-100/5A100:5A CT, 30 x 20/26mm stepped bore, 2.5VA burden
ASK31.3-150/5A150:5A CT, 30 x 20/26mm stepped bore, 2.5VA burden
ASK31.3-200/5A200:5A CT, 30 x 20/26mm stepped bore, 5VA burden
ASK31.3-250/5A250:5A CT, 30 x 20/26mm stepped bore, 5VA burden
ASK31.3-300/5A300:5A CT, 30 x 20/26mm stepped bore, 5VA burden
ASK31.3-400/5A400:5A CT, 30 x 20/26mm stepped bore, 10VA burden
ASK31.3-500/5A500:5A CT, 30 x 20/26mm stepped bore, 10VA burden
ASK31.3-600/5A600:5A CT, 30 x 20/26mm stepped bore, 10VA burden
ASK41.4-50/5A
Data sheet
50:5A CT, 40 x 10/32mm bore, 1.5VA burden
ASK41.4-60/5A60:5A CT, 40 x 10/32mm bore, 1.5VA burden
ASK41.4-75/5A75:5A CT, 40 x 10/32mm bore, 2.5VA burden
ASK41.4-100/5A100:5A CT, 40 x 10/32mm bore, 3.75VA burden
ASK41.4-150/5A150:5A CT, 40 x 10/32mm bore, 5VA burden
ASK41.4-200/5A200:5A CT, 40 x 10/32mm bore, 10VA burden
ASK41.4-250/5A250:5A CT, 40 x 10/32mm bore, 10VA burden
ASK41.4-300/5A300:5A CT, 40 x 10/32mm bore, 15VA burden
ASK41.4-400/5A400:5A CT, 40 x 10/32mm bore, 15VA burden
ASK41.4-500/5A500:5A CT, 40 x 10/32mm bore, 15VA burden
ASK41.4-600/5A600:5A CT, 40 x 10/32mm bore, 15VA burden
ASK41.4-800/5A800:5A CT, 40 x 10/32mm bore, 15VA burden
ASK41.4-1000/5A1000:5A CT, 40 x 10/32mm bore, 10VA burden
ASK81.4-400/5A
Data sheet
400:5A CT, 80 x 10/55mm bore, 5VA burden
ASK81.4-500/5A500:5A CT, 80 x 10/55mm bore, 10VA burden
ASK81.4-600/5A600:5A CT, 80 x 10/55mm bore, 10VA burden
ASK81.4-800/5A800:5A CT, 80 x 10/55mm bore, 15VA burden
ASK81.4-1000/5A1000:5A CT, 80 x 10/55mm bore, 30VA burden
ASK81.4-1200/5A1200:5A CT, 80 x 10/55mm bore, 15VA burden
ASK81.4-1600/5A1600:5A CT, 80 x 10/55mm bore, 30VA burden
ASK81.4-2000/5A2000:5A CT, 80 x 10/55mm bore, 30VA burden

Data sheet
ASK103.3-800/5A800:5A CT, 100mm bore, 15VA burden
ASK103.3-1600/5A1600:5A CT, 100mm bore, 30VA burden
ASK103.3-2000/5A2000:5A CT, 100mm bore, 30VA burden
ASK123.3-1600/5A
Data sheet
1600:5A CT, 100mm bore, 10VA burden
ASK123.3-2000/5A2000:5A CT, 100mm bore, 15VA burden
ASK123.3-2500/5A2500:5A CT, 100mm bore, 30VA burden
ASK123.3-3000/5A3000:5A CT, 100mm bore, 30VA burden
Rishabh Logo Rishabh Current Transformers
Data sheet
High quality current transformers
  • System voltage 720V 50-60Hz
  • Test voltage 4kVeff 50Hz 1 minute
  • Thermal short circuit current (Ith) 60 x In
  • Dynamic short circuit current (Idyn) 2.5 x Ith
  • Flame retardant 10% glass filled polycarbonate UL94V-0
  • International standards:
    BS3938, IEC/EN 60044-1, IEC 61869-1
  • Test certificate included with each CT
XMER 62/3060/5A1.5VA
XMER 62/30100/5A2.5VA
XMER 62/30150/5A5VA
XMER 62/40200/5A3.75VA
XMER 62/40300/5A5VA
XMER 62/40400/5A5VA
XMER 74/50500/5A10VA
XMER 86/50400/5A12.5VA
XMER 86/50600/5A20VA
XMER 86/50800/5A30VA
XMER 104/801000/5A20VA
XMER 104/801200/5A20VA
XMER 104/801500/5A30VA
XMER 104/801600/5A30VA
XMER 140/100V1000/5A20VA
XMER 140/100V1600/5A45VA
XMER 140/100V2000/5A45VA
XMER 140/100V2500/5A45VA
TE Connectivity 3-in-1 Current Transformers
Data sheet
High quality triple current transformers
  • System voltage 720V 50-60Hz
  • Test voltage 3kV for 1 minute
  • Thermal short circuit current (Ith) 60 x In
  • Dynamic short circuit current (Idyn) 2.55 x Ith
  • Flame retardant polycarbonate UL94V-0
  • International standards IEC/EN 60044-1
  • DIN rail, bus bar or base mounting
  • 3 sizes: 15 x 25mm, 21 x 25mm & 31 x 31mm apertures
M3N1-25-60/560/5AClass 1VA
M3N1-25-100/5100/5AClass 1 1.5VA
M3N1-25-125/5125/5AClass 1 1.5VA
M3N1-25-160/5160/5AClass 0.5/1 1.5VA
M3N1-35-100/5100/5AClass 1 1.5VA
M3N1-35-125/5125/5AClass 1 1.5VA
M3N1-35-150/5150/5AClass 1 1.5VA
M3N1-35-160/5160/5AClass 0.5/1 1.5VA
M3N1-35-200/5200/5AClass 0.5/1 1.5VA
M3N1-35-250/5250/5AClass 0.5/1 1.5VA
M3N1-45-250/5250/5AClass 0.5/1 1.5VA
M3N1-45-300/5300/5AClass 0.5/1 2.5VA
M3N1-45-400/5400/5AClass 0.5/1 2.5VA
M3N1-45-500/5500/5AClass 0.5/1 2.5VA
M3N1-45-630/5630/5AClass 0.5/1 2.5VA
TE Connectivity Summation Current Transformers
Data sheet
S95P & S97P Series Summation CTs
  • System voltage 720V 50-60Hz
  • Test voltage 3kV for 1 minute
S95-P94-5+52 way, 5+5=5A5VA Class 1
S95-P94-5+5+53 way, 5+5+5=5A5VA Class 1
S97-P-5+5+5+54 way, 5+5+5+5=5A5VA Class 1
S97-P-5+5+5+5+55 way, 5+5+5+5+5=5A5VA Class 1
Protection Current Transformers
Carrel Electrade can supply a range of protection CTs from various manufacturers.
As customer requirements are varied and the available range quite extensive, please contact sales with your requirements.
Sales: sales@carrel-electrade.co.nz

MBS Protection CTs
Rishabh Protection CTs
