akYtec Panel Meters
|
|
 |
Digital Panel Meters & Displays
Manufactured by akYtec GmbH Hanover Germany
|
|
| |
Model ITP11
|
|

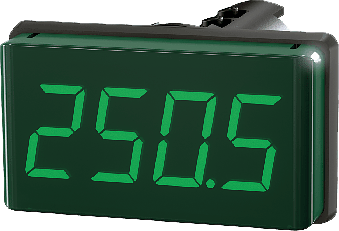

Models ITP11 & ITP11-G Digital 4-20mA Loop Powered Scaling Meter
Panel mount - 22.5mm hole, 48 x 26mm bezel
4 digit LED display, red or green 14mm high digits
Input 4-20mA, 10V burden
Programmable scaling
Programmable decimal point
Accuracy 0.2% + 1 digit
1 reading/s
IP65 from front, IP20 at rear
Supply from 4-20mA current loop, <10V drop
|
|
| |
Model ITP15
|
|
Model ITP15 Bar Graph Display
Panel mount - 22.5mm hole, 48 x 26mm bezel
0 to 100% display, 10 segments, red or green programmable
Current or voltage input, 0-5mA, 0(4)-20mA, 0(2)-10V
Digital output, NPN
Alarm function
IP65 from front, IP20 at rear
Supply 10-30Vdc, 1W
|
|
ITP15 setup video
|
|
| |
Model ITP16
|
|
Model ITP16 Temperature Indicator
Panel mount - 22.5mm hole, 48 x 26mm bezel
Input thermocouple or RTD
Display from -999 to +9999
Accuracy 0.2%
Alarm function
IP65 from front, IP20 at rear
Supply 10-30Vdc, 1W
|
|
| |
Model INS-F1
|
|
Model INS-F1 Digital Voltmeter
Panel mount - 22.5mm hole, 48 x 26mm bezel
4 digit red LED display, 14mm high digits
Input 5-400Vac 50Hz, burden 500k Ohm
Accuracy 0.25% + 1 digit
1 reading/s
Supply 8-30Vdc, 4W
IP65 from front, IP20 at rear
|
|
| |
Model SMI2
|
|
Model SMI2 RS-485 Modbus Meter
Universal display for monitoring industrial processes.
Panel mount - 22.5mm hole, 48 x 26mm
4 digit red LED display, 14mm high digits
Modbus RTU/ASCII, master or slave
Supports several variable formats, int, word, float & string
10.5 to 30V dc 1.5W supply
2.4k to 115.2k Baud
|
|
|
|
Flyer
