Audible & Visual Alarms
Industrial Signals
Manufactured by Auer Signal, Austria
ES1
Brochure
Instructions
ES1 Multitone Sounder
  • 86-106dBA @ 1m
  • 32 selectable tones
  • Continuously rated
  • Supply 24Vdc (18-35Vdc) 9-36mA
  • Environment IP65 -20°C to +70°C

ES2
Brochure
Instructions
ES2 Multitone Sounder
  • 86-106dBA @ 1m
  • 32 selectable tones
  • Continuously rated
  • Supply 110-230Vac. 12mA
  • Environment IP65 -20°C to +70°C

ASS-T
Brochure
Instructions
Tone table
ASS-T Multitone Sounder
  • max. 108dBA @ 1m
  • 32 selectable tones
  • 3 tones externally switchable
  • Adjustable volume
  • Continuously rated
  • Supply 24V ac/dc & 230Vac
  • Environment IP66 -30°C to +60°C

ASM
Brochure
Instructions
Tone table
ASM Multitone Sounder
  • max. 113dBA @ 1m
  • 32 selectable tones
  • 3 tones externally switchable
  • Adjustable volume
  • Continuously rated
  • Supply 24V ac/dc & 230Vac
  • Environment IP66 -30°C to +60°C

ASL
Brochure
Instructions
Tone table
ASL Multitone Sounder
  • max. 120dBA @ 1m
  • 63 selectable tones
  • 3 tones externally switchable
  • Adjustable volume
  • Continuously rated
  • Supply 24V ac/dc & 230Vac
  • Environment IP66 -30°C to +60°C

ASX
Brochure
Instructions
Tone table
ASX Multitone Sounder
  • max. 127dBA @ 1m
  • 63 selectable tones
  • 3 tones externally switchable
  • Adjustable volume
  • Continuously rated
  • Supply 230/240Vac
  • Environment IP66 -30°C to +60°C

EHS
Brochure
EHS Sounder
  • 118dBA @ 1m
  • Environment IP66 -30°C to +60°C
  • Die cast aluminium construction
  • Continuously rated
  • Supplies 12-24V ac/dc, 230V ac

QDS, QDM, ASM, ASS-T combos
Brochure

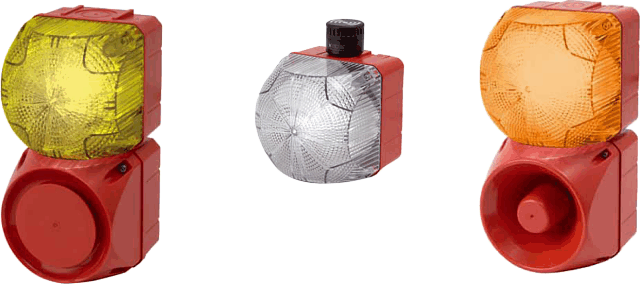

QDS, QDM LED Beacons with ASM & ASS-T Sounder Combinations
Modular beacon sounder system
  • Steady state or flashing LED beacons
  • Mult-itone sounders with up to 113dBA @ 1m sound output
  • Environment IP66 -30°C to +60°C
  • Supplies 24V ac/dc & 230/240Vac
  • Beacon colours amber, green, red, clear & blue

QDL, QBL, ASL combos
Brochure
QDL, QDL LED Beacons with ASL Sounder Combinations
Modular beacon sounder system
  • Steady state, flashing or strobe LED beacons
  • 170Cd(QDL) pr 250Cd(QBL) light output
  • Mult-itone sounders with up to 120dBA @ 1m sound output
  • Environment IP66 -30°C to +60°C
  • Supplies 24V ac/dc & 230/240Vac
  • Beacon colours amber & red

ELM & ELG
Brochure
ELM & ELG Panel mounted LED Flashing
Beacon & Buzzer combination.
  • Steady state or flashing
  • Flash rate 2Hz
  • Environment IP65 -25°C to +60°C
  • Supplies 12V, 24V ac/dc & 230Vac
  • ELM - 45mm diameter, 85-98dB 3500Hz
  • ELG - 65mm diameter, 85-103dB 2800Hz
  • Amber or red, other colours on request
