Audible & Visual Alarms
Industrial Sounders & Beacons
Manufactured by Sirena
New from Sirena
M-LINE Industrial Sounders & Beacons

M-Line has been engineered with a unique modular concept which allows each of the three domes to be mounted on any of the five bases, reducing the number of components stocked.

M-LINE industrial sounders & beacons range.

M-LINE-PNP-24VDC Sirena PNP driver interface.
The Sirena PNP driver interface converts common negative input signals into common positive output signals to drive the alarm level select inputs of Sirena MLine products.


SIR-E
Data sheet
SIR-E Multi-function Electronic Sirens
M-LINE industrial sounders using a modular design concept.
  • Two separate selectable alarm levels
  • 64 selectable tones
  • Continuously rated
  • Supplies 12-24V ac/dc & 90-240Vac with powered base
  • Sound output up to 105dB(A) @ 1 metre
  • Environment IP65 -30°C to +50°C
  • Multiple base/mounting options

SIR-E MAX
Data sheet
SIR-E MAX Multifunction Sounder
M-LINE industrial sounders using a modular design concept.
  • Two separate selectable alarm levels
  • 64 selectable tones
  • Continuously rated
  • Supplies 12-24V ac/dc & 90-240Vac with powered base
  • Sound output up to 115dB(A) @ 1 metre
  • Environment IP65 -30°C to +50°C
  • Multiple base/mounting options

SIR-E-LED
Data sheet
SIR-E-LED Multifunction Sounder & LED Beacon
M-LINE combined sounder & beacon using a modular design concept.
  • Three separate selectable alarm levels
  • 64 selectable tones
  • Continuously rated
  • Supplies 24V ac/dc & 240Vac
  • Sound output up to 105dB(A) @ 1 metre
  • Environment IP65 -30°C to +50°C
  • Available colours - red, green, amber & blue
  • Multiple base/mounting options

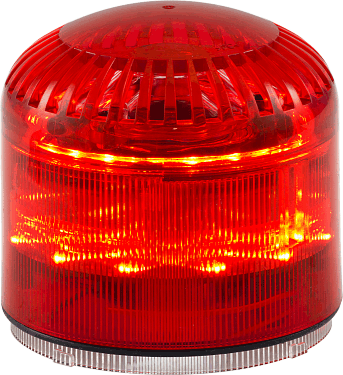

SIR-E-LED MAX
Data sheet
SIR-E-LED MAX High Output Multifunction Sounder & LED Beacon
M-LINE combined sounder & beacon using a modular design concept.
  • Three separate selectable alarm levels
  • 64 selectable tones
  • Continuously rated
  • Supply 24V ac/dc
  • Sound output up to 115dB(A) @ 1 metre
    Adjustable down to 65dB(A)
  • Environment IP65 -30°C to +50°C
  • Available colours - red & amber
  • Multiple base/mounting options

P40-A-LED
Data sheet
P40-A-LED Combined Sounder & Beacon
Panel mounted piezoelectrical sounder & LED beacon combination.
  • Supplies 12-24V ac/dc & 48-240Vac
  • 3 levels of alarm
    • Flashing light
    • Flashing light & intermittent sound
    • Steady light & continuous sound
  • Sound output 85dB(A) @ 1 metre
  • Environment IP65 -30°C to +50°C
  • Available colours - red, amber & green

P40-A
Data sheet
P40-A Panel Mounted Piezoelectrical Sounder
Intermittent or continuous sound
  • Supplies 12-24V ac/dc & 48-240Vac
  • Sound output 85dB(A) @ 1 metre
  • Environment IP65 -30°C to +50°C

SLEM
Data sheet
SLEM Electromagnetic Sounder & Beacon
Flashing or continuous light options, continuous tone.
  • Continuously rated
  • Supplies 24Vdc, 24V & 240V ac
  • Sound output 92-96dB(A) @ 1 metre, frequency approximately 650Hz
  • BA15d 5W lamp
  • Environment IP43 -30°C to +50°C
  • Available colours - amber, red, green, blue & clear

Superovolux
Data sheet
Superovolux Combined Sounder & LED Flashing Beacon
Selectable tone 1 with flashing beacon, tone 2 with flashing beacon
or just flashing beacon.
  • Continuously rated
  • Supply 12-24V ac/dc
  • Flash rate 110/min.
  • 32 tones divided into two channels
  • Sound output 94-96dB(A) @ 1 metre
  • Environment IP65 -30°C to +50°C
  • Available colours - red, amber, green, blue & clear
