Timers & Counters
Timers
Manufactured by Crouzet
MBA22
MBA-DC data sheet
MBA-AC data sheet
Crouzet MBA22 Miniature Panel Mounted Timers
  • 22mm push button style
  • IP66 rated
  • Delay on, adjustable time ranges: 1s, 10s, 60s, 60m
  • MBA-DC - 24Vdc supply, PNP 200mA output
  • MBA-AC - 100/230V ac/dc supply, 200mA O/C 2-wire output

TMR 48
TMR48-U data sheet
TMR48-L data sheet
Crouzet TMR48 Panel Mounted Timers
TMR48-U multifinction timer
TMR48-L recycling timer
  • Housing 48x48mm, 11 pin plug in
  • Time ranges from 0.2s to 300hrs
  • Two 5A timed C/O contacts
  • 12-240Vac/24-240Vdc supply

Chronos2 Plug-in Timers
Data sheet.
Crouzet Chronos2 Plug-in Timers, Relay Output
OCR1 Delay Off Timer, 8 pin
OLR1 Recycling Timer, 8 pin
OUR3 Multi-function Timer, 8 pin
PL2R1 Recycling Timer, 11 pin
PU2R3 Multi-function, 11 pin
  • Analogue dial setting type, 48x48mm panel mount option
  • 16 selectable time ranges, 0.05sec to 10hours
  • 250Vac relay output, 3A resistive N/O, 2A resistive N/C
  • Supply 100-240Vac (50/60Hz), 24-240Vdc
  • Functions:
    • Power on delay, 2 timed contacts
    • Power on delay pulse output, 1 timed & 1 instantaneous contact
    • Power on delay, 1 timed & 1 instantaneous contact
    • Recycling off start, 2 timed contacts
    • Recycling on start, 1 timed & 1 instantaneous contact
    • Interval, 1 timed & 1 instantaneous contact

Chronos2 17.5mm Timers
Data sheet.
Crouzet Chronos2 17.5mm DIN Rail Mounted Timers
MAR1 Delay On Timer, 24Vdc/24-240Vac supplies, 0.1s to 100h, SPCO 8A
MCR1 Delay-Off, 24Vdc/24-240Vac supplies, 0.1s to 100h, SPCO 8A.
MLR1 Recycling, 24Vdc/24-240Vac supplies, 0.1s to 100h, SPCO 8A.
MUR3 Multi-function, 12-240Vac supplies, 0.1s to 100h, SPCO 8A.

Chronos2 22.5mm Timers
Data sheet.
Crouzet Chronos2 22.5mm DIN Rail Mounted Timers

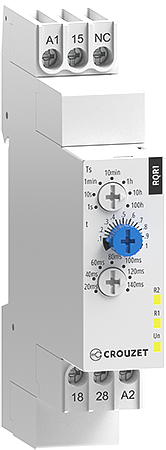

RQR1 Star/delta, 24-240Vac/24Vdc, 20-140ms.
RQR6 Star/delta, 240Vac/380-440Vac, 20-140ms.
