Timers & Counters
Timers
Manufactured by Finder
Finder DIN Rail Timers
Data sheet
Finder DIN Rail Mount Timers
80.01 Multifunction Timer
  • Time ranges 0.1s to 20hrs
  • Supplies 12-240V ac/dc
  • Functions:
    • Power on delay
    • Power off delay
    • One shot
    • Symmetrical recycling
  • 17.5mm wide

Finder DIN Rail Timers
Data sheet
80.91 Recycling Timer
  • Time ranges 0.1s to 24hrs
  • Supply 12-240V ac/dc
  • 17.5mm wide

Finder DIN Rail Timers
Data sheet
80.61 True Delay Off Timer
  • Time ranges 0.5s to 180s
  • Supply 24-240V ac/dc
  • 17.5mm wide

Finder DIN Rail Timers
Data sheet
80.82 Star-Delta Timer
  • Time ranges 0.1s to 20min
  • Supply 12-240V ac/dc
  • 17.5mm wide

Finder DIN Rail Timers
Data sheet

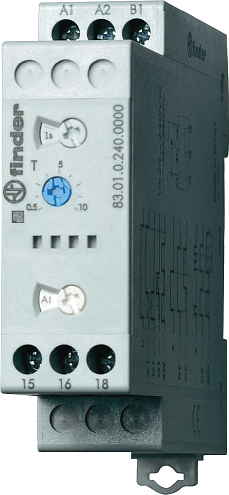

83.01 Multifunction Timer
  • Time ranges 0.05s to 10 days
  • Supply 24-240V ac/dc
  • 1 pole
  • 22.5mm wide

Finder DIN Rail Timers
Data sheet

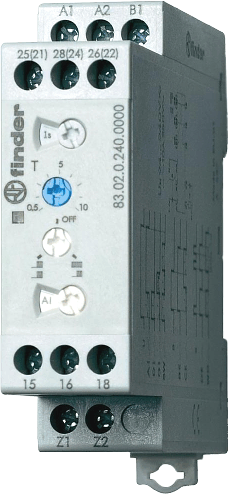

83.02 Timer
  • Time ranges 0.05s to 10 days
  • Supply 24-240V ac/dc
  • 2 pole, timed or instantaneous options
  • External pot option
  • 22.5mm wide

Finder DIN Rail Timers
Data sheet
83.52 Timer
  • Time ranges 0.05s to 10 days
  • Supply 24-240V ac/dc
  • 2 pole, timed or instantaneous options
  • External pot option
  • 3 options with pause option
  • 22.5mm wide

Finder DIN Rail Timers
Data sheet
83.62 True Delay Off Timer
  • Time ranges 0.05s to 3min
  • Supply 24-240V ac/dc
  • 2 pole
  • 22.5mm wide

Finder Plug-in Timers
Data sheet
Finder 85 Series Plug-in Timers
85.02 Multifunction Timer
  • Miniature plug-in timers for flat pin bases
  • Time ranges 0.05s to 100hrs
  • Supplies 24/110V ac/dc & 240Vac
  • Functions:
    • Power on delay
    • Power on delay pulse
    • Fixed pulse
    • Symmetrical recycling

Finder Plug-in Timers
Data sheet
Finder 88.02 Multifunction Timer
  • 11 pin plug-in timers for 90 series bases
  • Time ranges 0.05s to 100hrs
  • Supply 24-240V ac/dc, 2.5VA(230V) 1W(24V)
  • 8A 250Vac DPDT relay contacts
  • Functions:
    • On delay (AI)
    • Interval (DI)
    • Pulse delayed (GI)
    • Symmetrical flasher (SW)
    • Off delay with control signal (BE)
    • On & off delay with control signal (CEa)
    • Interval with control signal (DE)

Finder Plug-in Timers
Data sheet
Finder 88.92 Asymmetrical Recycling Timer
  • 8 pin plug-in timers for 90 series bases
  • Time ranges 0.05s to 300hrs
  • Supply 24-240V ac/dc, 2.5VA(230V) 1.5W(24V)
  • 8A 250Vac DPDT relay contacts
