T-ILE4x Multi-Range Loop Powered Current Transducer

T-ILE4L & T-ILE4H Multi-Range
Loop Powered Current Transducers

The T-ILE4L & T-ILE4H current transducers convert an ac current input into a load independent 4 to 20mA dc signal capable of driving a number of independent instruments.
The T-ILE4L has 4 selectable ranges from 5A to 20A
& the T-ILE4H has 4 selectable ranges from 25A to 100A.
Accurate measurement assumes a sinusoidal input waveform.
The transducer has a built in ring type current transformer (CT). The input is achieved by passing the current carrying conductor through the CT.
Power for the unit is derived from the loop current.


Basic Specifications:
InputSinusoidal alternating current
T-ILE4L Ranges: 5A, 10A, 15A, 20A
T-ILE4H Ranges: 25A, 50A, 75A, 100A
Frequency: 50Hz, 60Hz
OutputLoad independent dc current
: 4 - 20mA dc <750Ω load
Accuracy: Class 0.5 to IEC 60688
Range: 0 to 120% of nominal input
Loop Supply: 10 - 30V dc
IsolationGalvanic isolation between input & output circuits
Test voltage: 4kV 50Hz ac for 1 minute
TemperatureOperating: -10°C to +20°C to +50°C
EMC Compliance: AS/NZS 61000.6.3:2012

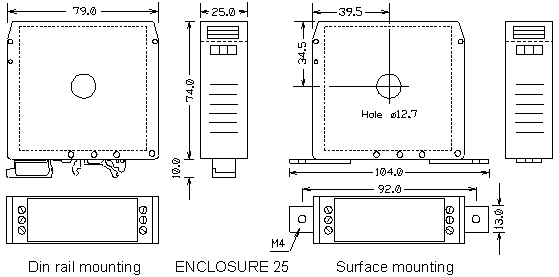

Dimensions
