Power Supplies
Power Supplies
LED Power Supplies
Manufactured by Mean Well Enterprises Taiwan

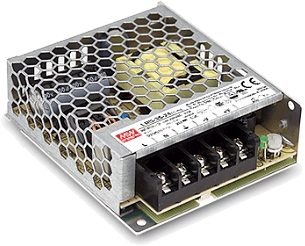

LRS-35

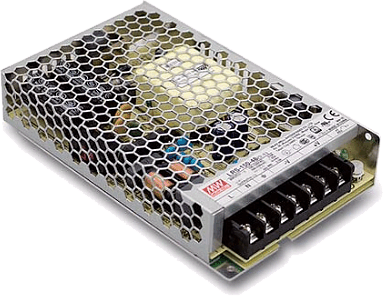

LRS-150
Mean Well LRS Series
Single output enclosed switching power supply.
  • Wide AC input range
  • Small size
  • High efficiency, long life & high reliability
  • Short circuit, overload & over voltage protection
  • Free-air convection cooling
  • Complete with mounting bracket

Models:
LRS-35-12 - 12Vdc 3A output, 35W. Dimensions 99x82x30mm. 88-264Vac input
LRS-35-24 - 24Vdc 1.5A output, 35W. Dimensions 99x82x30mm. 88-264Vac input
LRS-50-12 - 12Vdc 4.2A output, 50W. Dimensions 99x82x30mm. 88-264Vac input
LRS-50-24 - 24Vdc 2.2A output, 50W. Dimensions 99x82x30mm. 88-264Vac input
LRS-75-12 - 12Vdc 6A output, 75W. Dimensions 99x97x30mm. 88-264Vac input
LRS-75-24 - 24Vdc 3.2A output, 75W. Dimensions 99x97x30mm. 88-264Vac input
LRS-100-12 - 12Vdc 8.5A output, 100W. Dimensions 129x97x30mm. 88-264Vac input
LRS-100-24 - 24Vdc 4.5A output, 100W. Dimensions 129x97x30mm. 88-264Vac input
LRS-150-12 - 12Vdc 12.5A output, 150W. Dimensions 159x97x30mm. 115/230Vac input
LRS-150-24 - 24Vdc 6.5A output, 150W. Dimensions 159x97x30mm. 115/230Vac input


SP-75 Mean Well SP Series
Single output enclosed switching power supply with power factor correction.
  • Wide AC input range, 85-264Vac
  • Power factor correction PFC
  • Short circuit, overload & over voltage protection

Models:
SP-75-24 - 24Vdc 3.2A output, 75W. Dimensions 179x99x33mm.
SP-100-24 - 24Vdc 4.2A output, 100W. Dimensions 179x97x45mm.
SP-150-24 - 24Vdc 6.3A output, 150W. Dimensions 199x99x50mm.
SP-240-12 - 12Vdc 20A output, 240W. Dimensions 190x93x50mm.
SP-240-24 - 24Vdc 10A output, 240W. Dimensions 190x93x50mm.
SP-320-12 - 12Vdc 25A output, 320W. Dimensions 215x115x50mm.
SP-320-24 - 24Vdc 13A output, 320W. Dimensions 215x115x50mm.
SP-480-24 - 24Vdc 22A output, 500W. Dimensions 278x127x43mm.

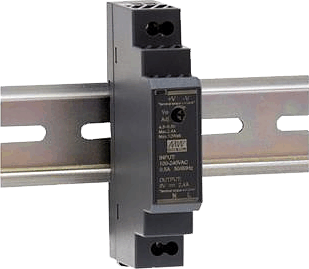

HDR-15

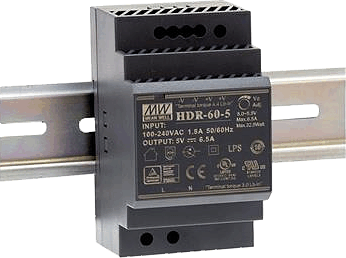

HDR-60
Mean Well HDR Series
DIN rail mounting switching power supply.
  • Wide AC input range, 85-264Vac
  • Short circuit, overload & over voltage protection
  • Free air convection cooling

Models:
HDR-15-12 - 12Vdc 1.25A output, 15W. Dimensions 17.5x58.4x90mm.
HDR-15-24 - 24Vdc 0.63A output, 15W. Dimensions 17.5x58.4x90mm.
HDR-30-12 - 12Vdc 2A output, 30W. Dimensions 35x58.4x90mm.
HDR-30-24 - 24Vdc 1.5A output, 30W. Dimensions 35x58.4x90mm.
HDR-60-12 - 12Vdc 4.5A output, 60W. Dimensions 52.5x58.4x90mm.
HDR-60-24 - 24Vdc 2.5A output, 60W. Dimensions 52.5x58.4x90mm.

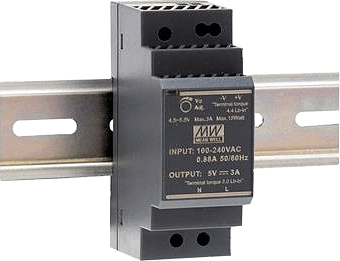

HDR-30

MDR-10
MDR-100
Mean Well MDR Series
DIN rail mounting switching power supply.
  • Wide AC input range, 85-264Vac
  • Short circuit, overload & over voltage protection
  • Free air convection cooling

Models:
MDR-10-5 - 5Vdc 2A output, 10W. Dimensions 22.5x90x100mm.
MDR-10-12 - 12Vdc 0.84A output, 10W. Dimensions 22.5x90x100mm.
MDR-10-24 - 24Vdc 0.42A output, 10W. Dimensions 22.5x90x100mm.
MDR-20-5 - 5Vdc 3A output, 15W. Dimensions 22.5x90x100mm.
MDR-20-12 - 12Vdc 1.67A output, 24W. Dimensions 22.5x90x100mm.
MDR-20-15 - 15Vdc 1.34A output, 24W. Dimensions 22.5x90x100mm.
MDR-20-24 - 24Vdc 1A output, 24W. Dimensions 22.5x90x100mm.
MDR-40-5 - 5Vdc 6A output, 30W. Dimensions 40x90x100mm.
MDR-40-12 - 12Vdc 3.33A output, 40W. Dimensions 40x90x100mm.
MDR-40-24 - 24Vdc 1.7A output, 40W. Dimensions 40x90x100mm.
MDR-40-48 - 48Vdc 0.82A output, 39.8W. Dimensions 40x90x100mm.
MDR-60-5 - 5Vdc 10A output, 50W. Dimensions 40x90x100mm.
MDR-60-12 - 12Vdc 5A output, 60W. Dimensions 40x90x100mm.
MDR-60-24 - 24Vdc 2.5A output, 60W. Dimensions 40x90x100mm.
MDR-60-48 - 48Vdc 1.25A output, 60W. Dimensions 40x90x100mm.
MDR-100-12 - 12Vdc 7.5A output, 100W. Dimensions 55x90x100mm.
MDR-100-24 - 24Vdc 4A output, 100W. Dimensions 55x90x100mm.


NDR-75
NDR-75
Mean Well NDR Series
DIN rail mounting switching power supply.
  • Wide AC input range, 90-264Vac
  • Short circuit, overload & over voltage protection
  • Free air convection cooling

Models:
NDR-75-12 - 12Vdc 6.3A output, 75W. Dimensions 32x125x102mm.
NDR-75-24 - 24Vdc 3.2A output, 75W. Dimensions 32x125x102mm.
NDR-120-12 - 12Vdc 10A output, 120W. Dimensions 40x125x113mm.
NDR-120-24 - 24Vdc 5A output, 120W. Dimensions 40x125x113mm.
NDR-240-24 - 24Vdc 10A output, 240W. Dimensions 63x125x113mm.
NDR-480-24 - 24Vdc 20A output, 480W. Dimensions 85x125x128mm.

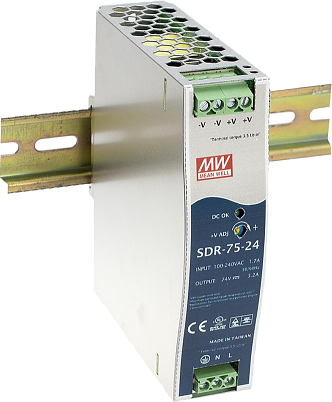

SDR-75

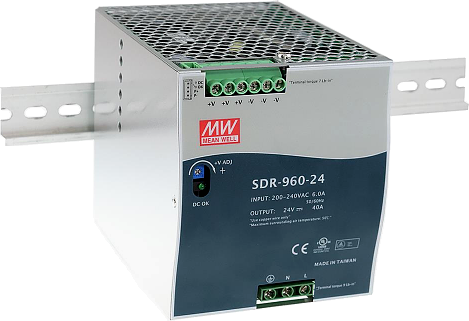

SDR-960
Mean Well SDR Series
DIN rail mounting switching power supply.
  • Wide AC input range, 90-264Vac
  • Power factor correction PFC
  • Short circuit, overload, over voltage & over temperature protection
  • Free air convection cooling
  • SDR-480P current sharing

Models:
SDR-75-12 - 12Vdc 6.3A output, 75.6W. Dimensions 32W x 125.2H x 102D (mm).
SDR-75-24 - 24Vdc 3.2A output, 76.8W. Dimensions 32W x 125.2H x 102D (mm).
SDR-120-12 - 12Vdc 10A output, 120W. Dimensions 40W x 125.2H x 113.5D (mm).
SDR-120-24 - 24Vdc 5A output, 120W. Dimensions 40W x 125.2H x 113.5D (mm).
SDR-240-24 - 24Vdc 10A output, 240W. Dimensions 63W x 125.2H x 113.5D (mm).
SDR-480-24 - 24Vdc 20A output, 480W. Dimensions 63W x 125.2H x 113.5D (mm).
SDR-480-48 - 48Vdc 10A output, 480W. Dimensions 63W x 125.2H x 113.5D (mm).
SDR-480P-24 - 24Vdc 20A output, 480W. Dimensions 63W x 125.2H x 113.5D (mm).
SDR-960-24 - 24Vdc 40A output, 960W. Dimensions 110W x 125.2H x 150D (mm).
SDR-960-48 - 48Vdc 20A output, 960W. Dimensions 110W x 125.2H x 150D (mm).

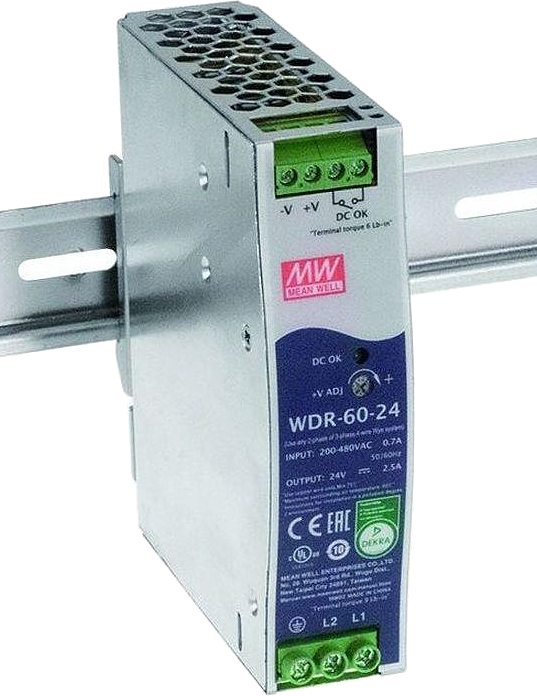

WDR-60-12

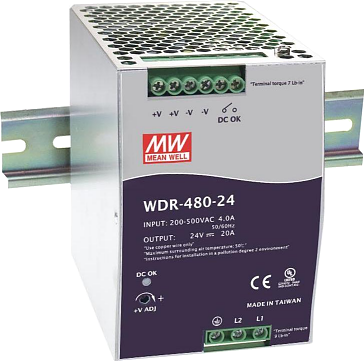

WDR-490-24
Mean Well WDR Series
DIN rail mounting switching power supply.
  • Single & two phase supply, 180Vac to 550Vac
  • Power factor correction PFC
  • Short circuit, overload, over voltage & over temperature protection
  • Free air convection cooling

Models:
WDR-60-12 - 12Vdc 5A output, 60W. Dimensions 32W x 125.2H x 102D (mm).
WDR-60-24 - 12Vdc 2.5A output, 60W. Dimensions 32W x 125.2H x 102D (mm).
WDR-120-12 - 12Vdc 10A output, 120W. Dimensions 40W x 125.2H x 113.5D (mm).
WDR-120-24 - 24Vdc 5A output, 120W. Dimensions 40W x 125.2H x 113.5D (mm).
WDR-240-24 - 24Vdc 10A output, 240W. Dimensions 64W x 125.2H x 113.5D (mm).
WDR-480-24 - 24Vdc 20A output, 480W. Dimensions 85.5W x 125.2H x 128.5D (mm).
WDR-480-24 - 24Vdc 20A output, 480W. Dimensions 85.5W x 125.2H x 128.5D (mm).

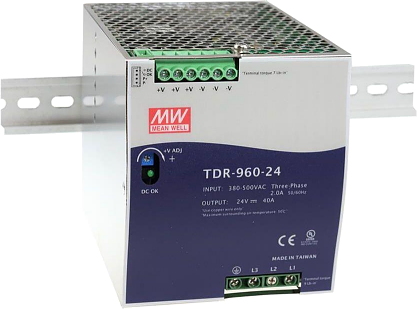

TDR-960 Mean Well 3-Phase Power Supplies
DIN rail mounting switching power supply.
  • Wide AC input range
  • High efficiency
  • Short circuit, overload, over voltage & over temperature protection
  • Free air convection cooling
  • Built in power factor correction

Models:
TDR-480-24 - 24Vdc 20A 480W output. Dimensions 85.5mm wide.
TDR-960-24 - 24Vdc 40A 960W output. Dimensions 110mm wide.
TDR-960-48 - 48Vdc 20A 960W output. Dimensions 110mm wide.


LED Power Solutions
Manufactured by Mean Well Enterprises Taiwan

APC-12

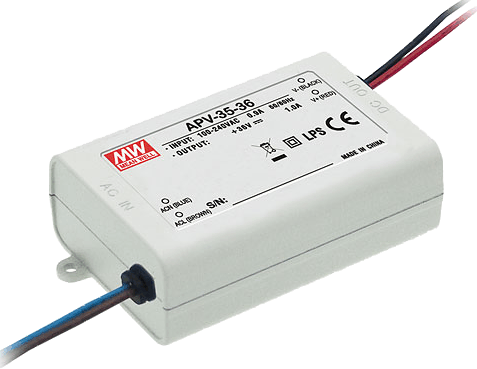

APV-35
Mean Well AP Series
Economy LED power supplies for indoor lighting.
  • Wide AC input range, 90-264Vac
  • Short circuit & over voltage protection
  • Models for 12-35W output
  • Constant current or constant voltage output

Constant current models:
APC-12-350 - 9-36V 350mA output.
APC-12-700 - 9-18V 700mA output.
APC-16-350 - 12-48V 350mA output.
APC-16-700 - 9-24V 700mA output.
APC-25-700 - 11-36V 700mA output.
APC-25-1050 - 9-24V 1.05A output.
APC-35-700 - 11-36V 700mA output.
APC-35-1050 - 9-24V 1.05A output.

Constant voltage models:
APV-12-12 - 12V 1A output.
APV-12-24 - 24V 500mA output.
APV-16-12 - 12V 1.25A output.
APV-16-24 - 24V 0.67A output.
APV-25-12 - 12V 2.1A output.
APV-25-24 - 24V 1.05A output.
APV-35-12 - 12V 3A output.
APV-35-24 - 24V 1.2A output.

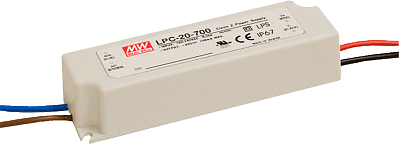

LPC-20
LPC-20

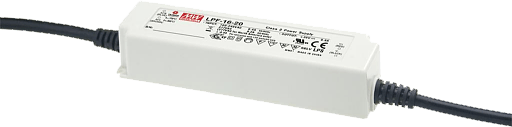

LPF-16

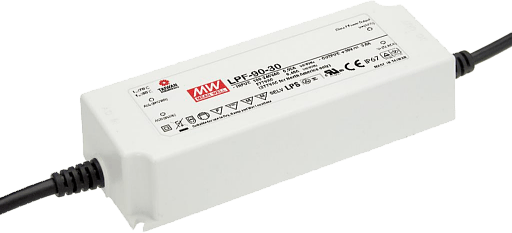

LPF-90
Mean Well LP Series
Economy LED power supplies.
  • Wide AC input range, 90-264Vac
  • Short circuit & over voltage protection
  • Models for 18-100W output
  • Constant current or constant voltage output
  • IP67 rated
  • LPF models with power factor correction, PFC

Constant current models:
LPC-20-350 - 9-48V 350mA output.
LPC-20-700 - 9-30V 700mA output.
LPC-35-700 - 9-48V 700mA output.
LPC-35-1050 - 9-30V 1050mA output.
LPC-60-1050 - 9-48V 1050mA output.
LPC-60-1750 - 9-34V 1750mA output.

Constant voltage models:
LPV-20-12 - 12V 1.67A output.
LPV-20-24 - 24V 0.84A output.
LPV-35-12 - 12V 3A output.
LPV-35-24 - 24V 1.5A output.
LPV-60-12 - 12V 5A output.
LPV-60-24 - 24V 2.5A output.
LPV-100-12 - 12V 8.5A output.
LPV-100-24 - 24V 4.2A output.

Constant voltage models with power factor correction, PFC:
LPF-16-12 - 16W 12V 1.34A output.
LPF-16-24 - 16W 24V 8.80A output.
LPF-25-12 - 25W 12V 2.1A output.
LPF-25-24 - 25W 24V 1.05A output.
LPF-40-12 - 40W 12V 3.34A output.
LPF-40-24 - 40W 24V 1.67A output.
LPF-60-12 - 60W 12V 5A output.
LPF-60-24 - 60W 24V 2.5A output.
LPF-90-12 - 90W 24V 3.75A output.


HLG-80H

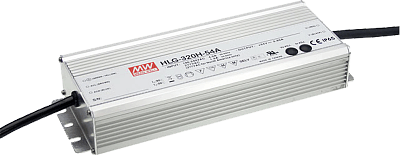

HLG-320H
Mean Well HLG Series
Adjustable voltage & current output.
  • Wide AC input range, 90-305Vac
  • Short circuit, overload, over voltage & over temperature protection
  • Power factor correction
  • Models for 80-320W output
  • IP67 rated

Constant current models:
HLG-80H-12A - 60W 12V/5A.
HLG-80H-24A - 80W 24V/3.4A.
HLG-120H-12A - 120W 12V/10A.
HLG-120H-24A - 120W 24V/5A.
HLG-150H-12A - 150W 12V/12.5A.
HLG-150H-24A - 150W 24V/6.3A.
HLG-240H-12A - 240W 12V/16A.
HLG-240H-24A - 240W 24V/10A.
HLG-320H-12A - 320W 12V/22A.
HLG-320H-24A - 320W 24V/13.3A.

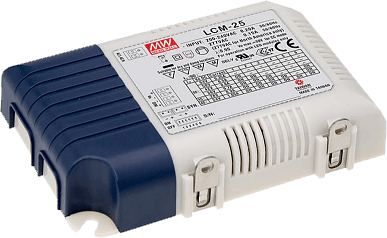

LCM-25 Mean Well LCM Series
Constant current mode LED driver.
Dimmable LED power supplies with multiple-stage output selectable by DIP switch.
PWM or resistance dimming function standard, optional DALI interface available.
  • Wide AC input range, 180-277Vac
  • Constant current design
  • Short circuit & over temperature protection
  • Power factor correction
  • Suitable for indoor use

LCM-25 - 350mA/6-54V to 1050mA/6-24V range selectable.
LCM-40 - 350mA/2-100V to 1050mA/2-40V range selectable.
LCM-60 - 500mA/2-90V to 1400mA/2-42V range selectable.

HLG-80H Mean Well PCD Series
Dimmable LED power supplies for indoor lighting.
  • Wide AC input range, 180-295Vac
  • Constant current design
  • Short circuit & over temperature protection
  • Power factor correction
  • Suitable for leading edge & trailing edge triac dimmers
  • IP30 rated

Constant current models:
PCD-25-350B - 40-58V/350mA.
PCD-25-700B - 24-36V/700mA.
PCD-25-1050B - 16-24V/1.05A.
PCD-25-1400B - 12-18V/1.4A.

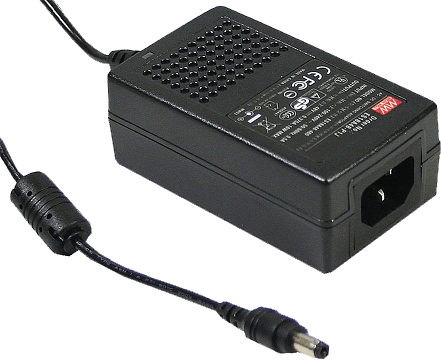

GS25A

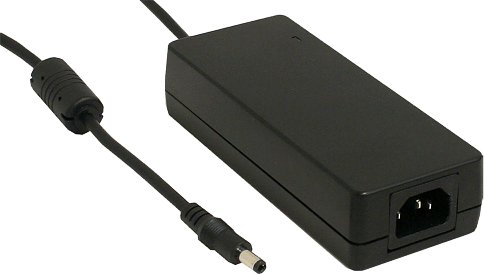

GST120A
Mean Well Desktop Industrial Power Adaptors
  • Wide AC input range, 90-264Vac/127-370Vdc
  • Overload, over voltage, over temperature & short circuit protection
  • LED indicator
  • P1J connector

GS25A12-P1J 25W 2.08A 12Vdc.
GS25A24-P1J 25W 1.04A 24Vdc.
GST40A12-P1J 40W 3.34A 12Vdc.
GST40A24-P1J 40W 1.67A 24Vdc.
GST60A12-P1J 60W 5A 12Vdc.
GST60A24-P1J 60W 2.5A 24Vdc.
GST90A12-P1J 90W 6.67A 12Vdc.
GST90A24-P1J 90W 3.75A 24Vdc.
GST120A12-P1J 120W 5A 24Vdc.

Battery Chargers
Manufactured by Datakom
Istanbul - Turkey

BC-125 The BC-125-M is a high effiency two stage lead acid battery charger.
Output 12V 5A, supply 107-305Vac.
These chargers a designed to be very robust having overload, short circuit, high temperature & reverse battery protection.
Features:
  • High efficiency, over 90%
  • Wide operating supply range, 170-305Vac
  • LED status indicator
  • Low power consumption at no load
  • Analog output for current measurement
  • Operating temperature -30°C to +80°C
  • Small size, 106mm(W) x 115mm(H) x 57mm(D)

BC-245 The BC-245-M is a high effiency two stage lead acid battery charger.
Output 24V 5A, supply 107-305Vac.
These chargers a designed to be very robust having overload, short circuit, high temperature & reverse battery protection.
Features:
  • High efficiency, over 90%
  • Wide operating supply range, 170-305Vac
  • LED status indicator
  • Low power consumption at no load
  • Analog output for current measurement
  • Operating temperature -30°C to +80°C
  • Small size, 106mm(W) x 115mm(H) x 57mm(D)
NZ flag
Carrel Electrade Limited
Proudly 100% New Zealand owned and operated.
