Audible & Visual Alarms
Industrial Signals
Manufactured by Auer Signal, Austria
MF Series
MFS brochure
MFM brochure
Instructions
M Series Xenon Strobe Beacons
MFS 7 joule, 90mm diameter x 164mm high
MFM 15 joule, 120mm diameter x 212mm high
  • Flash rate 1Hz
  • Environment IP65 -25°C to +60°C
  • Supplies 12-24V ac/dc & 230V ac
  • Amber, blue, green, red & clear

Accessories: magnetic mount and wall bracket.

XB2
Data sheet
XB2 Xenon Strobe Beacon
Note This is a low cost product with a limited (500,000 flashes) lamp life.
It is not suitable for continuous duty applications.
  • 2 Joule flash
  • Flash rate 1Hz
  • Environment IP65 -20°C to +70°C
  • Supplies 12Vdc, 24V ac/dc & 230V ac
  • Amber, red & blue(24V & 230V only)
    Other colours to order

ISL
Data sheet
ISL Panel Mounted Xenon Strobe Beacon
  • 1 Joule flash
  • Flash rate 1Hz
  • Environment IP65 -20°C to +70°C
  • Supplies 12/24V dc & 24/230V ac
  • Amber or red (other colours to order)

BLG
Data sheet
BLG LED Flashing Beacon
  • Flash rate 2Hz
  • Environment IP65 -35°C to +60°C
  • Supplies 24V ac/dc & 230Vac
  • Amber or red

PCL
Data sheet
PCL LED Flashing/Steady Beacons
Long life & low power consumption.
  • Flash rate 2Hz
  • 75mm diameter x 55mm high surface mount
  • Supplied with 1m PUR cable
  • Environment IP66 -30°C to +60°C
  • Supplies 24V ac/dc & 230Vac
  • Amber, red, blue & green

QDS
Brochure
Instructions
QDS LED Flashing or Continuous Beacon
  • 10Cd light intensity
  • Long life time 50,000 hours
  • Low current consumption
  • Flash rate 2Hz
  • Environment IP66 -30°C to +60°C
  • Supplies 24V ac/dc & 230Vac
  • Red, amber, green, blue or clear

QDM
Brochure
Instructions
QDM LED Flashing or Continuous Beacon
  • 120Cd light intensity
  • Long life time 50,000 hours
  • Low current consumption
  • Flash rate 2Hz
  • Environment IP66 -30°C to +60°C
  • Supplies 24-48V ac/dc & 110-230Vac
  • Red, amber, green, blue or clear

QDL
Brochure
Instructions
QDL LED Flashing or Continuous Beacon
  • 170Cd light intensity
  • Long life time 50,000 hours
  • Low current consumption
  • Flash rate 2Hz
  • Environment IP66 -30°C to +60°C
  • Supplies 24-48V ac/dc & 110-230Vac
  • Red, amber, green, blue or clear

QBL
Brochure
Instructions
QBL LED Multi Strobe Beacon
  • 250Cd light intensity
  • Long life time 50,000 hours
  • Low current consumption
  • Flash rate 1.4Hz double strobe, 1Hz 6 times strobe
  • Random flash option
  • Environment IP66 -30°C to +60°C
  • Supplies 24-48V ac/dc & 110-230Vac
  • Red, amber, green, blue & clear

IBM beacons
Data sheet
IBM Panel Mounted LED Flashing Beacon
  • Steady state or flashing
  • Flash rate 1Hz
  • Environment IP65 -25°C to +60°C
  • Supplies 12V, 24V ac/dc & 230Vac
  • Amber or red, other colours on request

ITL, ITM beacons
ITL data sheet
ITM data sheet
ITL & ITM Panel Mounted 2 colour LED Beacons
  • ITL Ø65mm, ITM Ø45mm
  • Steady state or flashing
  • Flash rate 1Hz
  • Environment IP65 -25°C to +60°C
  • Supplies 12V, 24V ac/dc & 230Vac
  • Amber or red, other colours on request

MRS rotary beacon
Brochure
Instructions
MRS Rotating Beacon
  • Easy to mount, maintenance friendly
  • Mounting options - bracket, pole & magnetic
  • Speed selection 90/180 rpm
  • 90mm diameter, 164mm high
  • Environment IP65 -25°C to +60°C
  • Supplies 12V, 24V ac/dc & 230/240Vac
  • Red, green, amber, blue & clear

MRS rotary beacon
Brochure
Instructions
MRM Rotating Beacon
  • Easy to mount, maintenance friendly
  • Mounting options - bracket, pole & magnetic
  • Speed selection 90/180 rpm
  • 120mm diameter, 212mm high
  • Environment IP65 -25°C to +60°C
  • Supplies 12V, 24V ac/dc & 230/240Vac
  • Red, green, amber, blue & clear

LED alf dome signal tower
Data sheet

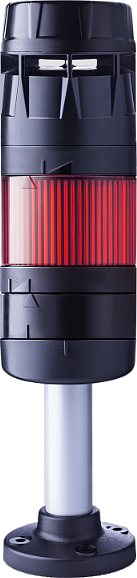

LED Half Dome Signal Tower
  • 3, 4 or 5 LED light sections
  • Piezo sounder 70-90dB
  • Environment IP65 -25°C to +50°C
  • Supply 24V ac/dc
  • Colours red, amber, green, blue, yellow & clear
  • Chrome finish housing
