Control Panel, Switchboard Accessories
|
|
|
Carrel Electrade supply a wide range of products for control panels & switchboards,
including LED cabinet lamps, push buttons, switches, panel indicators & buzzers.
|
|
 |
|
|

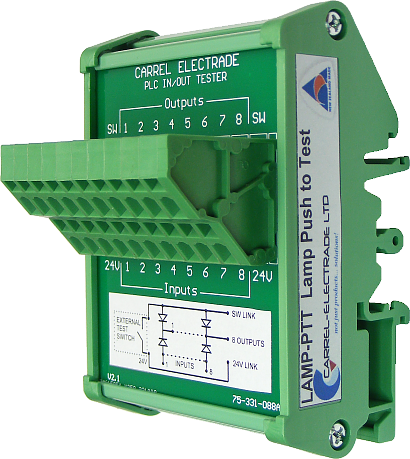

LAMP-PTT Lamp Push to Test Module
- Screw-less spring clamp terminal block
- 8 circuits in one block
- Easily expandable to multiple blocks
- 24V operation
|
|
 |

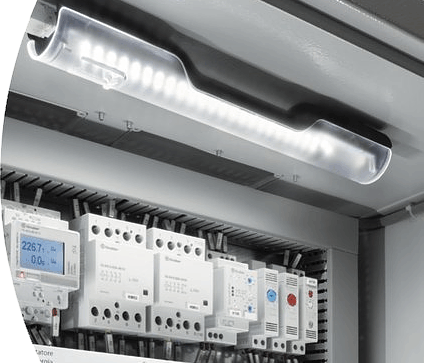

Finder Cabinet Lamps |
 |
7L Series LED Lights For Electrical Panels
- Magnetic mounting or screws
- Brightness level 1200 lumens
- On/Off switch or PIR movement detector
- Power supply options:
- 12-48V AC/DC
- 110-240V AC/DC
|
 |
|
 |
LED Pilot Lights
From Solitronics
|
|
|
|
|
SE-16D-IL LED Pilot Lights
- Colours - red, amber, green, blue & white
- Ø18mm diameter
- Long life, low power consumption
- Polycarbonate lens & diffuser
- 24V, 230V ac/dc
|
|
|
|
|
SEL-22D LED Pilot Lights
- Colours - red, amber, green, blue & white
- Ø22mm diameter
- Long life, low power consumption
- Polycarbonate lens & diffuser
- 12V, 24V, 130V, 230V ac/dc
|
|
| Panel Mount Indicators |
|

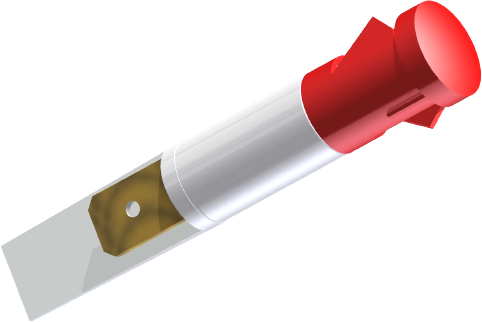

MKA1 Red LED round flat lense, 9mm 230Vac with 6.3mm QC spade terminals
MKA2 Green LED round flat lense, 9mm 230Vac with 6.3mm QC spade terminals
MKA3 Amber LED round flat lense, 9mm 230Vac with 6.3mm QC spade terminals
Data sheet
|
|

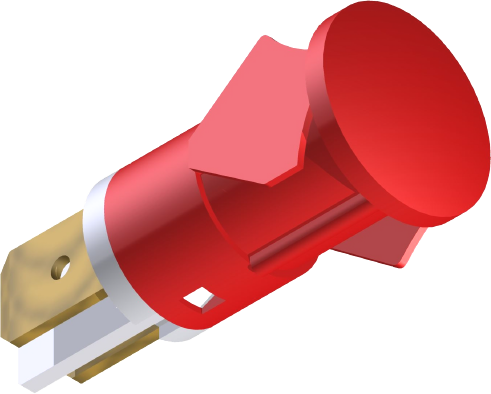

MKA4 Red LED round flat lense, 12mm 230Vac with 6.3mm QC spade terminals
MKA5 Green LED round flat lense, 12mm 230Vac with 6.3mm QC spade terminals
MKA6 Amber LED round flat lense, 12mm 230Vac with 6.3mm QC spade terminals
Data sheet
|
|

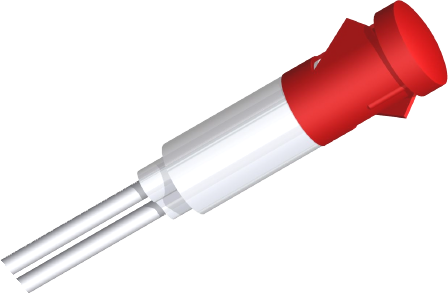

MKB1 Red LED round flat lense, 9mm 230Vac with 250mm leads
MKB2 Green LED round flat lense, 9mm 230Vac with 250mm leads
MKB3 Amber LED round flat lense, 9mm 230Vac with 250mm leads
Data sheet
|
|

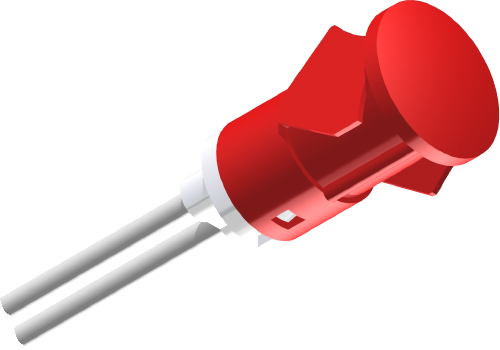

MKC1 Red neon round flat lense, 12mm 230Vac with 250mm leads
MKC2 Green neon round flat lense, 12mm 230Vac with 250mm leads
MKC3 Amber neon round flat lense, 12mm 230Vac with 250mm leads
Data sheet
|
|
 |
Pilot Lights & Neons
From SEDECO
|
|
|
|
SEDECO BD308-24V Plastic LED Indicator
- 24V ac/dc 18mA
- Colours: red, orange & green
- 7mm mounting hole
|
|
|
|
SEDECO 8000LED-12V & 8000LED-24V Chrome Bezel LED Indicator
- 12Vdc & 24Vdc 18mA
- Colours: red, amber & green
- 7mm mounting hole
|
|
|
|
SEDECO BN259-110 & BN259-220 Neon Indicator
- 110Vac & 230Vac supply
- Colours: BN259-110 red BN259-220 red, amber & green
- 7mm mounting hole
|
|
|
Panel Mounted Buzzers
From Solitronics
|
|
|
|
|
SE-16D-BZ Buzzers
- Ø18mm diameter
- Ø16mm mounting hole
- 80dB, 1 sec on/off
- 24V ac/dc or 240Vac
|
|
|
|
SEL-22D Beeper
- Ø29mm diameter
- Ø22mm mounting hole
- 80dB sound output
- 24V ac/dc or 240Vac
|
|
|
