Control Panel, Switchboard Accessories
|
|
|
Carrel Electrade supply a wide range of products for control panels & switchboards,
including selector & isolating switches, DIN rail terminals, stand-offs & test blocks.
|
|
|
 |
Distribution Blocks & Terminals
Manufactured by MOREK Estonia
|
|
|
|

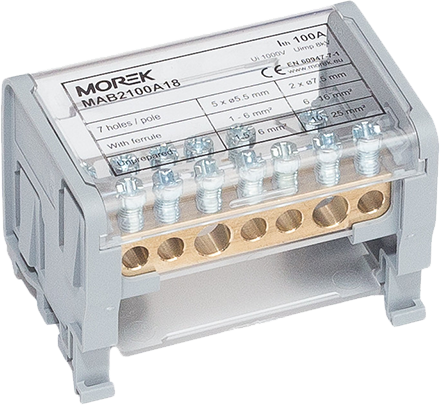

MO-BLOCK2P-100A-7 Distribution Block
MAB2100A18 2 pole 100A
- Terminal block on isolated bracket
- Removable transparent cover
- Nominal voltage 1kV
- DIN rail or panel mounting
- 7 holes/pole, input wires 2x10-25mm2, output wires 5x1.5-6mm2
|
|
|
|

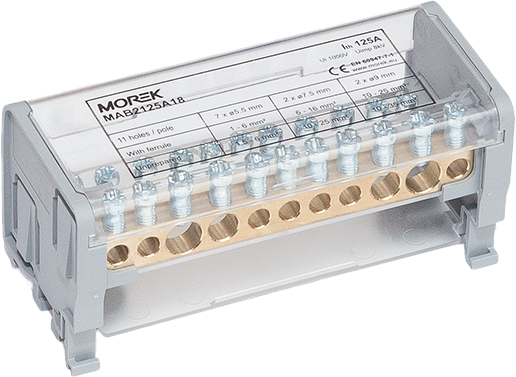

MO-BLOCK2P-125A-11 Distribution Block
MAB2125A18 2 pole 125A
- Terminal block on isolated bracket
- Removable transparent cover
- Nominal voltage 1kV
- DIN rail or panel mounting
- 11 holes/pole, input wires 2x10-35mm2, output wires 7x1.5-6mm2 + 2x10-25mm2
|
|
|
|

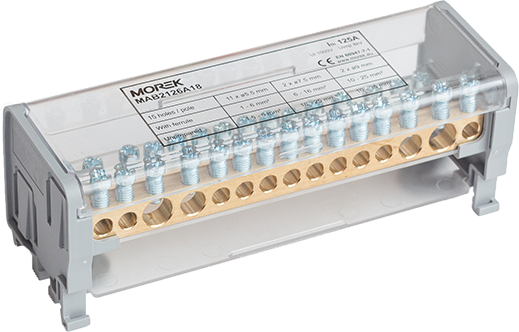

MO-BLOCK2P-125A-15 Distribution Block
MAB2126A18 2 pole 125A
- Terminal block on isolated bracket
- Removable transparent cover
- Nominal voltage 1kV
- DIN rail or panel mounting
- 15 holes/pole, input wires 2x10-35mm2, output wires 11x1.5-6mm2 + 2x10-25mm2
|
|
|
|

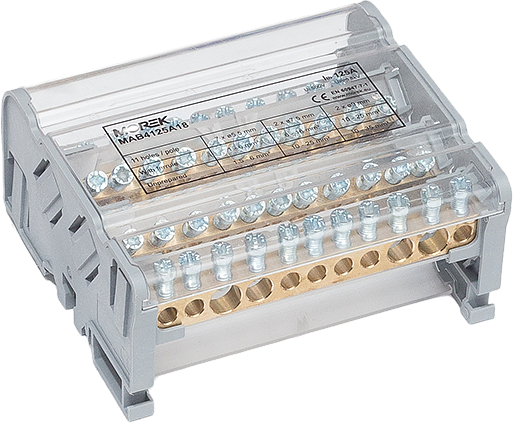

MO-BLOCK4P-125A-11 Distribution Block
MAB4125A18 4 pole 125A
- Terminal block on isolated bracket
- Removable transparent cover
- Nominal voltage 500V
- DIN rail or panel mounting
- 11 holes/pole, input wires 2x10-35mm2, output wires 7x1.5-6mm2 + 2x10-25mm2
|
|
|
|

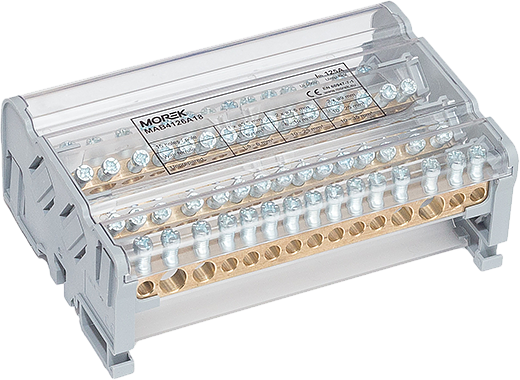

MO-BLOCK4P-125A-11 Distribution Block
MAB4126A18 4 pole 125A
- Terminal block on isolated bracket
- Removable transparent cover
- Nominal voltage 500V
- DIN rail or panel mounting
- 15 holes/pole, input wires 2x10-35mm2, output wires 11x1.5-6mm2 + 2x10-25mm2
|
|
|
|

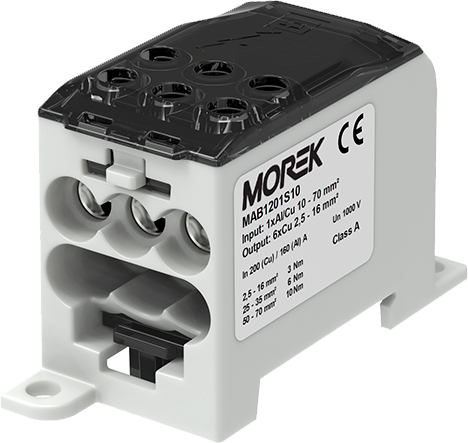

MO-OJL-200A Distribution Block
For distributing a conductor with a larger cross section to several smaller ones.
- OJL200A single pole 200A
- Screws tightened with hexagonal key
- Nominal voltage 1kV AC/DC
- DIN rail or panel mounting
- Input wire 10-70mm2, output wires 6x2.5-16mm2
|
|
|
|
MO-OJL-280A Distribution Block
For distributing a conductor with a larger cross section to several smaller ones.
- OJL280A single pole 280A
- Screws tightened with hexagonal key
- Nominal voltage 1kV AC/DC
- DIN rail or panel mounting
- Input wire 35-120mm2, output wires 4x2.5-10mm2 + 5x2.5-16mm2 + 2x6-35mm2
|
|
|
|
MO-OJL-400A Distribution Block
For distributing a conductor with a larger cross section to several smaller ones.
- OJL400A single pole 400A
- Screws tightened with hexagonal key
- Nominal voltage 1kV AC/DC
- DIN rail or panel mounting
- Input wire 95-240mm2, output wires 4x2.5-35mm2 + 3x6-50mm2
|
|
|
|

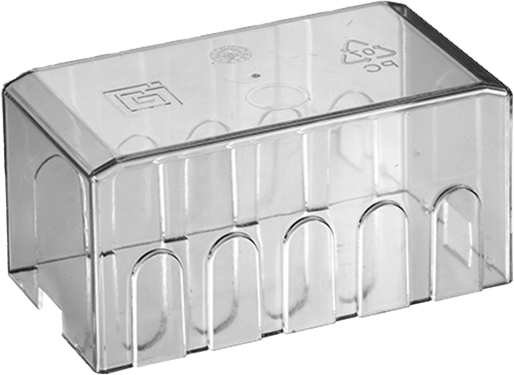

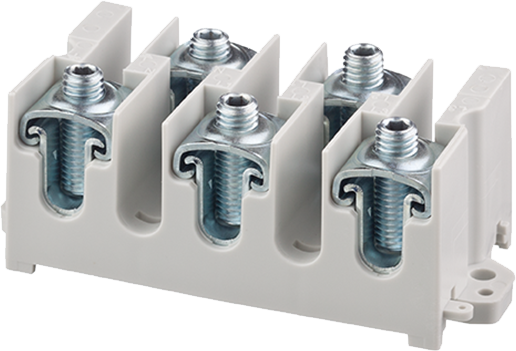

MAB16X5 Terminal Plate & MAB16X5-COVER Terminal Cover
- 5 poles
- Screws tightened with hexagonal key
- Nominal voltage 690V
- DIN rail or panel mounting
- Wires 5x2.5-16mm2
|
|
|
|
Neutral & Earth Terminals

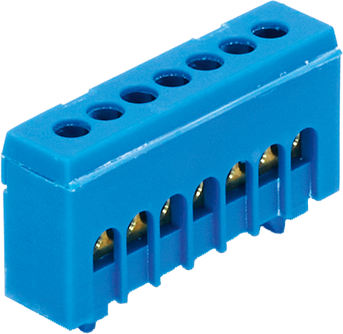

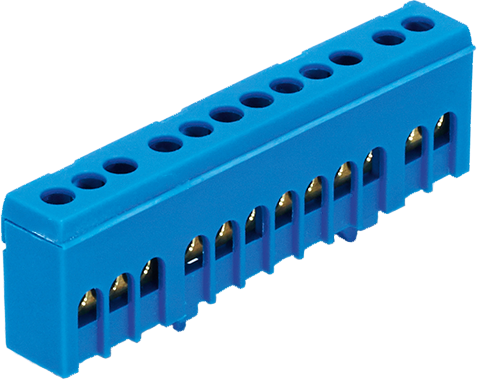

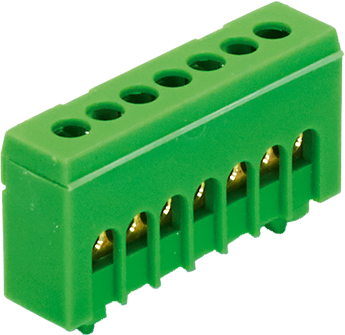

MO-N7H Neutral bar with 7x1.5-16mm2 connections
MO-N12H Neutral bar with 12x1.5-16mm2 connections

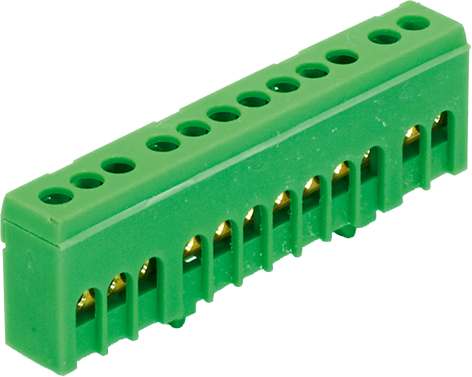

MO-PE7H Earth bar with 7x1.5-16mm2 connections
MO-PE12H Earth bar with 12x1.5-16mm2 connections
- 7 & 12 way options
- Nominal voltage 690V, 63A
- DIN rail mounting
- Wires 1.5-16mm2
|
|
|
|

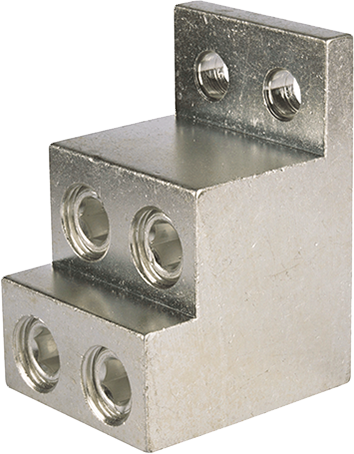

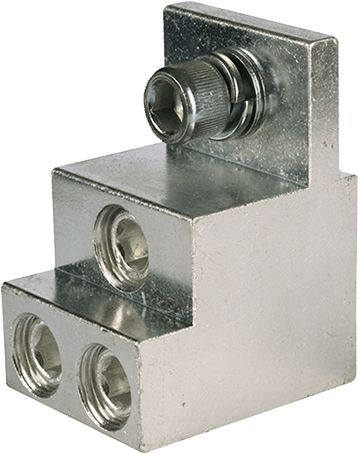

Universal Connectors
- Connect aluminium cables to copper cables
- MO-OTH240-3 - 800A, 3 wires 85-240mm2
- MO-OTH240-4 - 1250A, 4 wires 85-240mm2
- Wires 1.5-16mm2
|
|
|
|
Terminals & DIN Rail
A complete range of DIN rail mounting polyamide terminal stations.
|
|
|
|
Multigates

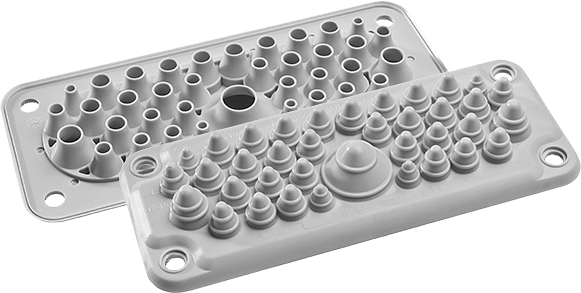

Plastic or metal reinforced cable gland plates for low to medium power cables & tubing
- IP66 & IP67 rated, -40°C to +100°C
- Excellent weather & UV resistance
- Oil resistant & flame retardant, UL94 V-0
|
|
|
|
Insulated Stand-Offs
With brass threaded inserts
- High dielectric strength, glass reinforced polyester
- High mechanical strength, dimensional stability
- Chemical & oil resistant
- Arc quenching
- From 30mm high with M6 threads to 75mm high with M12 threads
Carrel Electrade uses different suppliers for stand-offs depending on availability, therefore the exact dimensions may vary.
There is no part code or manufacturer details on individual stand-offs, however the invoice part code does differentiate between our two major suppliers.
Part codes ending with '-E' or not ending with '-E', ie I030EN-E or I030EN
|
|
|

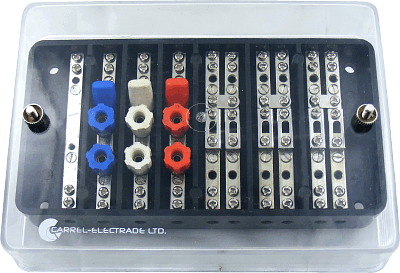

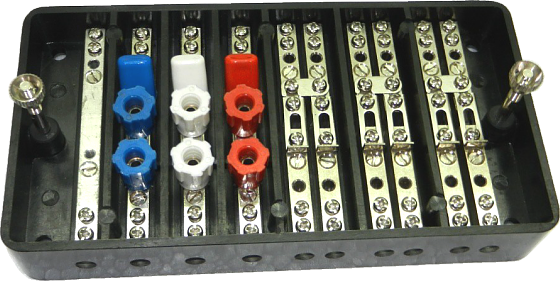

Test Terminal Blocks
Test blocks offer easy access for on site testing of ammeters, CTs etc.
|
|
|
TTB10WFC Front connecting 10-way test termnal block
- Continuously rated for 600V 30A at 50°C
- Made from high quality electrical grade bakelite
- Moulded barriers between terminals to prevent flash-overs
- Transparent flame retardant (UL94V0) polycarbonate cover
- Dimensions: length 218mm, width 80mm, height 64mm
|
|
|
TTB13WFC Front connecting 13-way test terminal block
- Continuously rated for 600V 30A at 50°C
- Made from high quality electrical grade bakelite
- Moulded barriers between terminals to prevent flash-overs
- Transparent flame retardant (UL94V0) polycarbonate cover
- Dimensions: length 218mm, width 80mm, height 64mm
|
|
|
|
Data sheet
