Panel Meters

Moving Coil Meters
Manufactured by Iskra Systemi d.d. Slovenia
High quality European switchboard instruments with exchangeable scale plates

Model Series BQ 0x07

90° quadrant scale

Class 1.5 accuracy

AC and DC Ammeters and Voltmeters scaled to order

BQ 0x07 data sheet.

BQ 0407 48x48mm Ammeters & Voltmeters

DC ammeters 1mA to 10A, AC ammeters 1.2mA to 1A direct connect
AC ammeters with integral CT up to 100A direct connect
DC voltmeters 50mV to 500V, AC voltmeters 10V to 500V

BQ 0307 72x72mm Ammeters & Voltmeters

DC ammeters 1mA to 30A, AC ammeters 1.2mA to 40A direct connect
AC ammeters with integral CT up to 100A direct connect
DC voltmeters 50mV to 500V, AC voltmeters 10V to 500V

BQ 0207 96x96mm Ammeters & Voltmeters

DC ammeters 1mA to 30A, AC ammeters 1.2mA to 40A direct connect
AC ammeters with integral CT up to 100A direct connect
DC voltmeters 50mV to 500V, AC voltmeters 10V to 500V

BQ 0107 144x144mm Ammeters & Voltmeters

DC ammeters 1mA to 30A, AC ammeters 1.2mA to 40A direct connect
AC ammeters with integral CT up to 100A direct connect
DC voltmeters 50mV to 500V, AC voltmeters 10V to 500V

Model Series BQ 2x07

240° long scale

Class 1.5 accuracy

AC and DC Ammeters and Voltmeters scaled to order

BQ 2x07 data sheet.

BQ 2407 48x48mm Ammeters & Voltmeters

DC ammeters 1mA to 10A, AC ammeters 1.2mA to 1A direct connect
AC ammeters with integral CT up to 100A direct connect
DC voltmeters 50mV to 500V, AC voltmeters 10V to 500V

BQ 2307 72x72mm Ammeters & Voltmeters

DC ammeters 1mA to 30A, AC ammeters 1.2mA to 40A direct connect
AC ammeters with integral CT up to 100A direct connect
DC voltmeters 50mV to 500V, AC voltmeters 10V to 500V

BQ 2207 96x96mm Ammeters & Voltmeters

DC ammeters 1mA to 30A, AC ammeters 1.2mA to 40A direct connect
AC ammeters with integral CT up to 100A direct connect
DC voltmeters 50mV to 500V, AC voltmeters 10V to 500V

BQ 2107 144x144mm Ammeters & Voltmeters

DC ammeters 1mA to 30A, AC ammeters 1.2mA to 40A direct connect
AC ammeters with integral CT up to 100A direct connect
DC voltmeters 50mV to 500V, AC voltmeters 10V to 500V

Moving Coil Meters
Manufactured by DER EE Electrical Instrument Taipei Taiwan

Model DE-120

DE-120 data sheet

Model DE-120 90° horizontal scale 120 x 100mm

AC and DC Ammeters and Voltmeters scaled to order
Tautband movement
Class accuracy 1.5
DC ammeters 50µA to 10A direct connect
AC ammeters 60µA to 1A direct connect
DC & AC voltmeters to 500V

Scale options:

Dual scale
Diode overload protection
Suppressed zero, offset or centre zero
Coloured bands or calibration marks
Calibration potentiometer

Model DE-786

DE-786 data sheet

Model DE-786 90° horizontal scale 86 x 78mm

AC and DC Ammeters and Voltmeters scaled to order
Class accuracy 2.5
DC ammeters 50µA to 20A direct connect
AC ammeters 60µA to 500mA direct connect
AC ammeters up to 30A with rear mounted current transformer
DC & AC voltmeters to 500V

Scale options:

Dual scale
Diode overload protection
Suppressed zero, offset or centre zero
Coloured bands or calibration marks
Calibration potentiometer

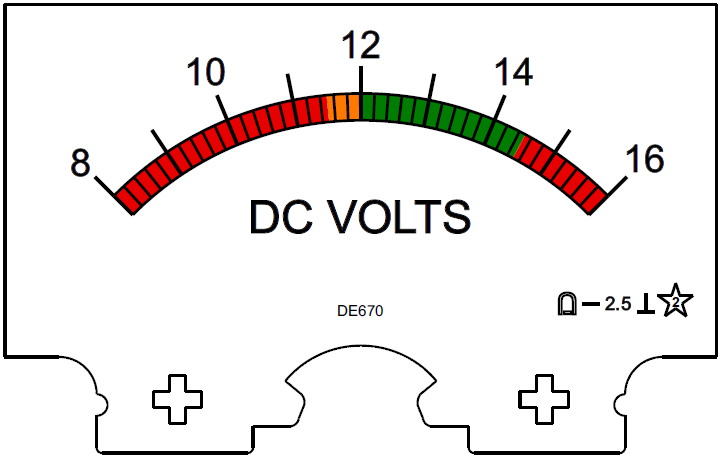

Model DE-670

DE-670 data sheet

Model DE-670 90° horizontal scale 70 x 60mm

Scale options:

Dual scale
Diode overload protection
Suppressed zero, offset or centre zero
Coloured bands or calibration marks
Calibration potentiometer

Model DE-110

DE-110 data sheet

Model DE-110 240° long scale 81 x 81mm

AC and DC Ammeters and Voltmeters scaled to order
Tautband movement
Class accuracy 1.5
DC ammeters 1mA to 10A direct connect
AC ammeters 1.2A to 1A direct connect
DC & AC voltmeters to 500V

Scale options:

Dual scale
Diode overload protection
Suppressed zero, offset or centre zero
Coloured bands or calibration marks
Calibration potentiometer

Edgewise Moving Coil Meters
Manufactured by GOSSEN Müller Weigert Germany

Model Pff72

Ammeters and Voltmeters manufactured to order

Blank meters 0-1mA dc
Class accuracy 1.5
Pff72 72mm x 24mm x 91mm
Pff96 96mm x 24mm x 91mm
Pff144 144mm x 36mm x 186mm
