Crouzet em4 nano PLC
|
|
 |
em4 nano Programmable Logic Controllers
Manufactured by Crouzet.
|
|
|
|
|

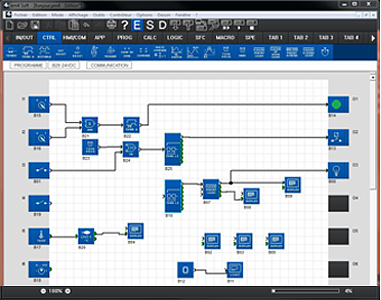

em4-Soft Intuitive graphical programming
Based on Crouzet's experience in Millenium programming software development, em4 soft is the new easy-to-use programming tool dedicated to the em4 nano-PLC range.
|
|
em4 Local
|
em4 -Local
Easy to use, easy to program stand alone PLC. Intuitive graphical programming.
- 26 I/O
- 24Vdc -15/+20% supply
- Highly visible display, 4 lines 18 characters. 6 programmable keys
- 12 digital/analog inputs
- 4 configurable digital inputs (0-10 V, 0-20, 4-20 mA)
- 2 PWM for analog output control or 0-10V/ 4-20 mA converter
- 8 relay outputs, 2 x 6A & 6 x 8A
- Programmable locally with an USB interface
- Optional Modbus RS485 slave interface
|
|
em4 Ethernet
|
em4 -Ethernet
With Embedded Ethernet Modbus TCP/IP server.
- Modbus TCP/IP server
- Datalog via email or FTP server
- Connect to your em4 via the internet

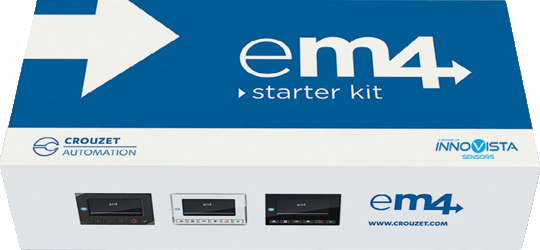

Starter Kit available
Kit Contents: em4 Ethernet nano-PLC, em4 Soft USB Stick, Ethernet Cable
|
|

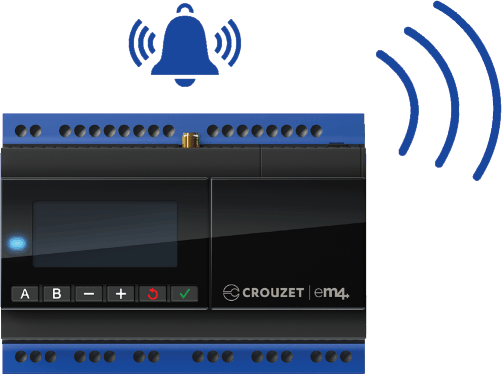

em4 Alert
|
em4 -Alert 3G
Connect your equipment to the GPRS 3G network.
- Get alerted by SMS or email
- Send data via SMS, email or FTP
- Exchange data between several Em4 Alert
- Use your own SIM card supplied by any operator
Starter Kit available
Kit Contents: em4 Alert nano-PLC, Wireless Antenna, em4 Soft USB Stick, USB Interface
|
|
|

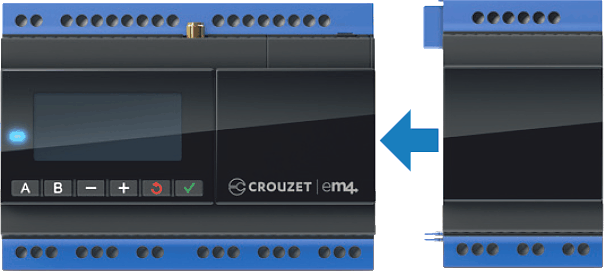

em4 -Expansions
- Analog I/O expansion module, 6 inputs & 4 outputs
- Digital expansion module, 6 inputs & 4 relay outputs
em4 -Accessories
- Modbus slave interface
- Usb interface
|
|
|
|
Data sheet
