Control IO-Link & MTL Industrial Wireless I/O
|
|
 |
IO-Link System
Manufactured by Comtrol
|
|
|
Comtrol IO-Link System
IO-Link is a powerful standard, an increasingly deployed point to point serial communication protocol used to communicate with sensors and/or actuators.
Extending the globally recognised PLC standard IEC 61131, it allows three types of data to be exchanged, process data, service data & events.
Major sensor manufacturers and industrial manufacturing companies, including Comtrol, have joined the international IO-Link Consortium to promote the IO-Link communication protocol due to its many advantages over standard I/O.
|
IO-Link Flyer
|
|
|

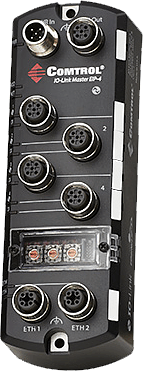

IO-Link Master Gateways
- 4 & 8 channel IO-Link Master to Modbus TCP
- Write-to-Tag/File, Read-from-Tag/File
- IO-Link V1.1 compatibility
- Rugged IP67 housing, M12 connectors for sensor connection
- Powerful web GUI for configuration and diagnostics
|
|
|
|
DeviceMaster FreeWire
DeviceMaster FreeWire provides flexible connection options for use in a wide range of applications.
For easy installation, the DeviceMaster FreeWire includes COM port redirector software for mapping local COM ports to the remote FreeWire serial connection.
- Wireless serial bridge features 802.11b/g wireless communications with option of direct 10/100 Ethernet connection
- Windows COM port redirector software for mapping remote serial ports to local PC COM ports
- Support for industry leading wireless security protocols
- 2.4 GHZ ISM Band
|
|
 |
Industrial Wireless I/O
Manufactured by MTL
|
|
|
WIO-900L Series Industrial Wireless I/O
- Point to point digital and/or analogue I/O transfer
- Easy to use, no configuration necessary
- 1W transmitter 921-928MHz frequency-hopping technology
- Secure data encryption
- Two digital I/O, one 0-20mA & one thermocouple mV analogue I/O
- Up to 32km range
- Communications failure indication
- Power supply 9-30Vdc, 24Vdc loop supply generated internally
Kit includes transmitter, receiver & two aerials.
|
|
|
|
