Iskra Contactors
Bi-Stable Contactors
Manufactured by Iskra
Bi-stable contactors
Data sheet
25A Bi-Stable Contactors
  • DIN rail mounting
  • 2 & 4 pole, NO & NC versions
  • Impulse & manual control
  • Width 2 pole 17.6mm 4 pole 35.2mm
  • 24Vdc, 24Vac & 230Vac
Stocked items:
BI225-20-24Vdc2P/25A
BI225-20-24Vac2P/25A
BI225-20-230Vac2P/25A
BI425-40-24Vac4P/25A
BI425-40-230Vac4P/25A
BI425-11-24Vdc2P/25A 1xNO, 1xNC
BI425-11-24Vac2P/25A 1xNO, 1xNC
BI425-11-230Vac2P/25A 1xNO, 1xNC
BI425-22-24Vdc4P/25A 2xNO, 2xNC
BI425-22-24Vac4P/25A 2xNO, 2xNC
BI425-22-230Vac4P/25A 2xNO, 2xNC

Bi-stable contactors
Data sheet

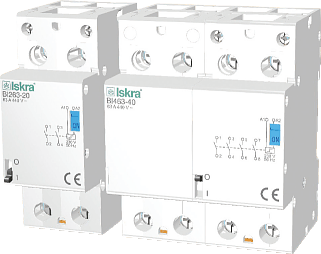

40A & 63A Bi-Stable Contactors
  • DIN rail mounting
  • 2 & 4 pole, NO & NC versions
  • Impulse & manual control
  • Width 2 pole 35mm 4 pole 70mm
  • 24Vac & 230Vac
Stocked items:
BI240-20-230Vac2P/40A
BI240-20-24Vac2P/40A
BI440-40-230Vac4P/40A
BI440-40-24Vac4P/40A
BI240-11-230Vac2P/40A 1xNO, 1xNC
BI240-11-24Vac2P/40A 1xNO, 1xNC
BI440-22-230Vac4P/40A 2xNO, 2xNC
BI440-22-24Vac4P/40A 2xNO, 2xNC
BI263-20-230Vac2P/63A
BI263-20-24Vac2P/63A
BI463-40-230Vac4P/63A
BI463-40-24Vac4P/63A
BI263-11-230Vac2P/63A 1xNO, 1xNC
BI263-11-24Vac2P/63A 1xNO, 1xNC
BI463-22-230Vac4P/63A 2xNO, 2xNC
BI463-22-24Vac4P/63A 2xNO, 2xNC
Bi-stable contactors
Data sheet
IK40-04 4 Pole NC Contactor
  • DIN rail mounting
  • 4 pole, NC contacts
  • Width 70mm
  • 230Vac
Stocked items:
BI240-20-230Vac2P/40A
BI240-20-24Vac2P/40A
BI440-40-230Vac4P/40A
BI440-40-24Vac4P/40A
BI240-11-230Vac2P/40A 1xNO, 1xNC
BI240-11-24Vac2P/40A 1xNO, 1xNC
BI440-22-230Vac4P/40A 2xNO, 2xNC
BI440-22-24Vac4P/40A 2xNO, 2xNC
BI263-20-230Vac2P/63A
BI263-20-24Vac2P/63A
BI463-40-230Vac4P/63A
BI463-40-24Vac4P/63A
BI263-11-230Vac2P/63A 1xNO, 1xNC
BI263-11-24Vac2P/63A 1xNO, 1xNC
BI463-22-230Vac4P/63A 2xNO, 2xNC
BI463-22-24Vac4P/63A 2xNO, 2xNC
