Safety Light Curtains & Grids
A full range of safety light curtains are available to order, providing Type 2 or Type 4 protection for complete machine safety from 160mm to 1800mm high.
Beam pitch options range from 14mm (finger protection), 30mm (hand protection), 50mm (arm/foot protection), through to full body protection systems.
Protection areas from 6m for smaller pitch units up to 12m for body protection curtains.
The area sensors are compact , with all control circuits and I/O contained inside a rugged aluminium housing.
With the wide range of light curtains from our suppliers, we are certain to satisfy the most demanding applications.
Safety Light Curtains
Manufactured by REER.
Type 2, Cat 2 Safety Light Curtains
EOS2 is a compact range of Type 2, Cat.2 Safety Light Curtains from Reer offering competitive performance & innovative features.
Ideal for the protection of any process machine, particularly where space restrictions exist.
The products comply to Safety level Type 2, SIL1/SILCL1 & PC c standards.
Includes models with integrated safety functions, including self monitoring of static outputs, EDM (External Device Monitoring), and selectable manual/auto restart.
A full range of accessories including floor-mount stands, tube-mounted mirrors & IP69K food-graded water tight.
- EOS2 454A Type 2 safety light curtain, 40mm pitch, 450mm high, 12m range
- EOS2 1203A Type 2 safety light curtain, 30mm pitch, 1200mm high, 12m range
- EOS2 1355A Type 2 safety light curtain, 50mm pitch, 1360mm high, 12m range
- EOS2 1805A Type 2 safety light curtain, 50mm pitch, 1810mm high, 12m range

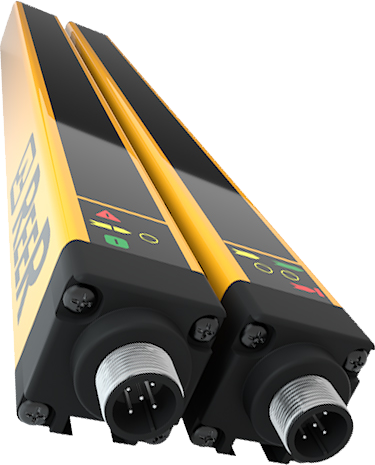

Type 4, Cat 4 Safety Light Curtains
The compact EOS4 range of Type 4, Cat.4 Safety light Curtains from ReeR offer small housing size & minimum dead zone, ideal for the protection of any process machine.
A full range of accessories including floor-mount stands, tube-mounted mirrors & IP69K food-graded water tight.
- EOS4 151X - 14mm pitch, 160mm high, 6m range
- EOS4 301X - 14mm pitch, 310mm high, 6m range
- EOS4 451X - 14mm pitch, 460mm high, 6m range
- EOS4 303X - 30mm pitch, 310mm high, 12m range
- EOS4 453X - 30mm pitch, 460mm high, 12m range
- EOS4 603X - 30mm pitch, 610mm high, 12m range
- EOS4 753X - 30mm pitch, 760mm high, 12m range
- EOS4 903X - 30mm pitch, 910mm high, 12m range
- EOS4 1053X - 30mm pitch, 1060mm high, 12m range
- EOS4 1203X - 30mm pitch, 1200mm high, 12m range
- EOS4 1503X - 30mm pitch, 1500mm high, 12m range
- EOS4 1355X - 50mm pitch, 1360mm high, 12m range
- EOS4 1653X - 50mm pitch, 1505mm high, 12m range
- EOS4 459X - 90mm pitch, 450mm high, 12m range
- EOS4 609X - 90mm pitch, 610mm high, 12m range
- EOS4 1509X - 90mm pitch, 1500mm high, 12m range
- EOS4 1809X - 90mm pitch, 1800mm high, 12m range
ReeR SAFEGATE
Access control Safety light curtains
The SAFEGATE type 4 range of safety light curtains are an ideal solution for the protection of high-risk industrial applications.
Highly configurable to suit any situation.

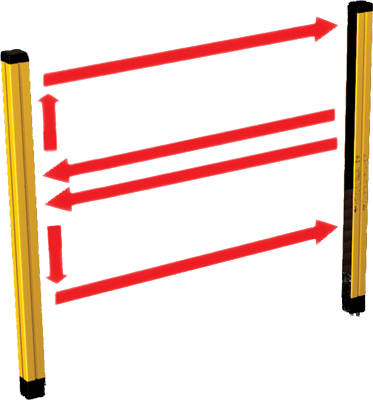

- SAFEGATE S 2B TRX
Type 4 Access control safety light curtain with passive retro-reflector element.
Two beam. Height 590mm, protected area 510mm
- SAFEGATE S 3B TRX
Type 4 Access control safety light curtain with passive retro-reflector element.
Three beam. Height 890mm, protected area 810mm
- SAFEGATE S 4B TRX
Type 4 Access control safety light curtain with passive retro-reflector element.
Four beam. Height 990mm, protected area 910mm

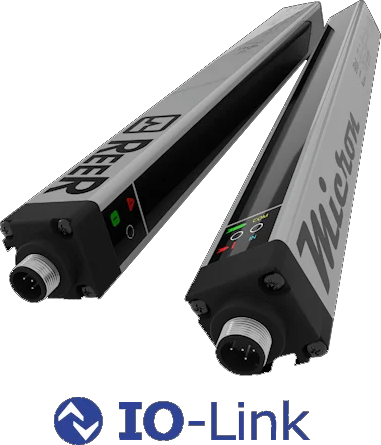

ReeR Micron
Measurement Light Curtains and Automation Sensors
Detect the presence or absence of objects, count objects, detect shape or profile or measure dimensions.
- Analog output options, 0-10Vdc or 4-20mA
- RS485 programmable functions option
- Programmable digital outputs option
- IO-Link protocol option
- IP65 & IP69k with watertight enclosure option

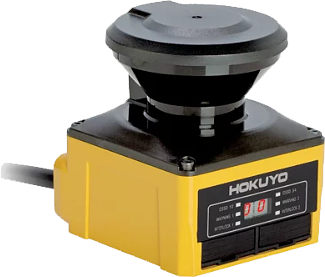

Safety Laser Scanner
Safety laser scanners ensure the safety of humans in a hazardous area, or those approaching a hazardous area.

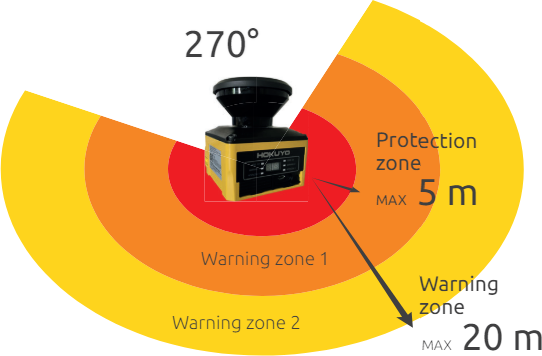

Up to 5 meters of protection zone & 20 meters of warning zone configuration to suit various application requirement.
Features:
- Protection zone : 5m 270°
- Data Output via Ethernet
- Master-Slave Function
- Dual Protection
- Encoder Input
Gamma System
Safety Bumpers, Safety Mats & Sensitive Edges

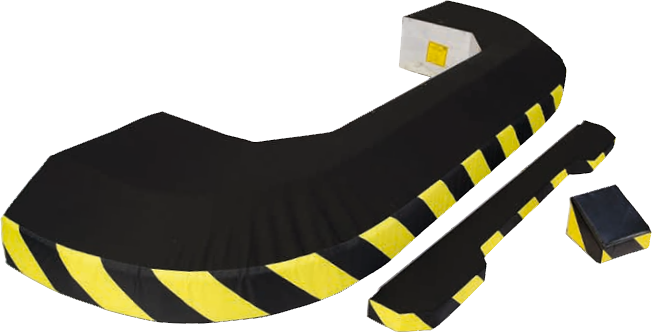

Safety Bumpers
Pressure-sensitive safety bumpers are used to protect personnel from collisions with vehicles, moving parts of industrial machinery etc.

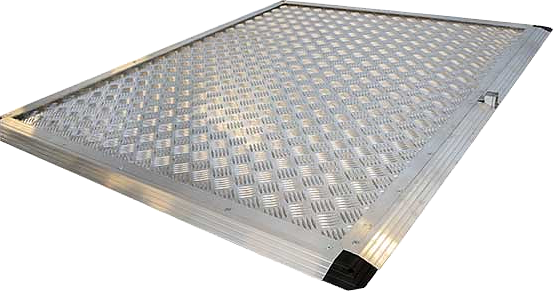

Safety Mats
A safety mat has a pressure sensitive element to detect the presence of someone on the mat.
A load over 35 kg on the mat closes a contact inside the sensor.

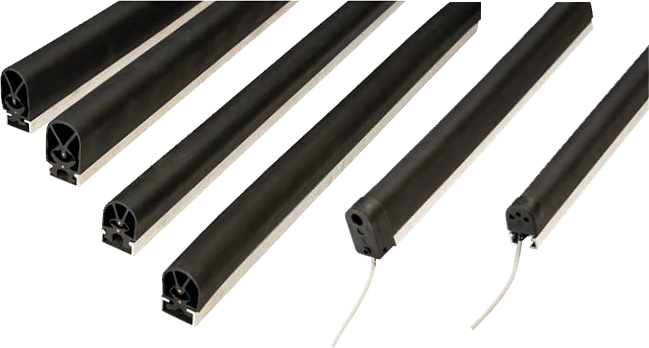

Sensitive Edges
A safety sensitive edge can be used to avoid someone or something comming into contact with moving objects.
When the edge is pressed an internal contact is made.
