Timers & Counters

R-ELT

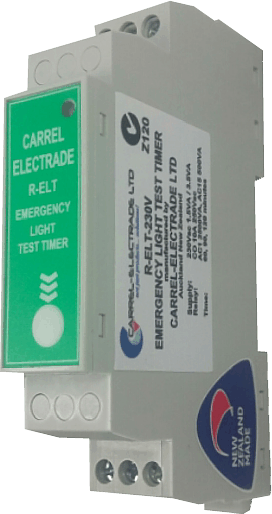

R-ELT Emergency Light Test Timer
Manufactured by Carrel Electrade Ltd.

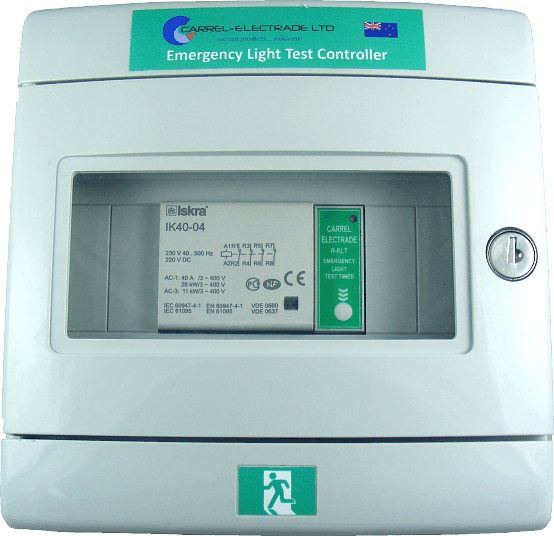

R-ELT Emergency Exit Light Test Controller
Manufactured by Carrel Electrade Ltd.

Finder DIN Rail Mounted Timers, 17.5mm

80.01 Multi-function timer 12-240V ac/dc 0.1s to 20hrs.
80.61 True delay off timer 24-240V ac/dc 0.5s to 3mins
80.82 Start-Delta timer 12-240V ac/dc 0.05s to 1min
80.91 Recycling timer 12-240V ac/dc 0.1s to 20Hrs.

Finder DIN Rail Mounted Timers, 22.5mm

83.01 Multifunction timer 24-240V ac/dc 0.05s to 10 days, single pole
83.02 Multifunction timer 12-240V ac/dc 0.05s to 10 days, double pole, instantaneous + options

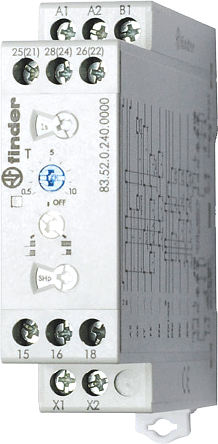

83.52 Multifunction timer 12-240V ac/dc 0.05s to 10 days, double pole instantaneous + options
83.62 Power off delay timer 24-240V ac/dc 0.05s to 10 days, double pole

Crouzet Panel Mounted Timers

MBA22 miniature panel mounted timer. Adjustable delay on function.
24Vdc PNP output or 100/230V ac/dc 2-wire O/C output. Ranges 1s, 10s, 60s, 60m. IP66 rated.

TMR 48 panel mounted timer. 48x48mm 11 pin plug in.
Multifunction & recycling options, 0.2s to 300hrs. Wide range ac/dc power supply.

Panasonic Panel Mounted Digital Timers.

LT4H-xx 8 modes, 0.001s-999.9h, 11 pin, 5A C/O contact.
LT4HW-xx Recycling, 0.001s-999.9h, 11 pin, 5A C/O contact.
QM4HG-U1C-xx Power on delay, 0.01s-990h, 8 pin 5A C/O contact.

Autonics Panel Mounted Plug-in Timers

	AT8N multi-function, multi-range timer. Supply 100-240Vac/24-240Vdc.
	AT11DN multi-function, multi-range timer. Supply 100-240Vac/24-240Vdc.
	LE3S digital multi-function, multi-range timer. Supply 90-264Vac/24-240Vdc.

Comadan C-MAC Plug-in Timers

	RT10 Delay on operate timer. RT12 Interval timer. RT14 Symmetrical recycler timer. RT16 Delay on release timer.
	RT20 Multi-function timer. RT31 Asymmetrical recycler timer. RT40 Pulse continuity timer. RD53 Pulse Preselect or Pulse Divide Relay

Crouzet Plug-in Timers, Relay Output

OCR1 Delay-Off, 24Vdc/24-240Vac supplies, 0.1s to 100h, 8 pin.
OLR1 Recycling, 24Vdc/24-240Vac supplies, 0.1s to 100h, 8 pin.
OUR3 Multi-function, 12-240Vac supplies, 0.1s to 100h, 8 pin.
PL2R1 Recycling, 24Vdc/24-240Vac supplies, 0.1s to 100h, 11 pin.
PU2R3 Multi-function, 12-240Vac supplies, 0.1s to 100h, 11 pin.

Finder 85 Series Plug-in Timers.

	85.02 multi function timer, 0.05s to 100hrs. Miniature plug-in timers for flat pin bases (94.02) Functions on-delay, on pulse, fixed pulse, symmetrical recycler. Supplies 24V & 110V ac/dc, 240Vac.
	88.02 Multi Function Timer, 0.05s to 100hrs. 11 pin plug-in/panel mount timer for 90 series sockets Functions include on-delay, interval, pulse delayed, symmetrical flasher etc. Supply 24-240V ac/dc, 8A 250Vac contacts.
	88.92 Asymmetrical Recycling Timer, 0.05s to 300hrs. 8 pin plug-in/panel mount timer for 90 series sockets Supply 24-240V ac/dc, 8A 250Vac contacts.
